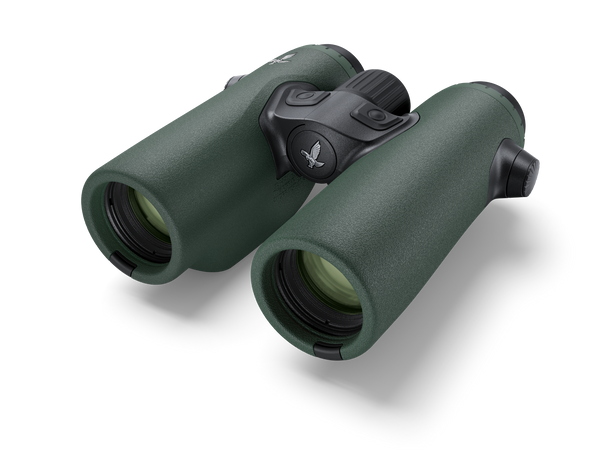

Swarovski EL Range 8x32 – PROVEN TECHNOLOGY IN A NEW PACKAGE
Compact & lightweight – these are the defining features of the new 32 models in the EL Range series. All the familiar EL Range advantages are combined in a complete optical and electronic package weighing just 680 grams (24 ounces). The electronics used for measurement and projection of information to the viewing channel are concealed in a single fin (right-hand side) on the Swarovski EL Range 8x32. The balanced HD optics concept provides awe-inspiring details in a compact design – high-contrast images with natural colors and razor-sharp contours.

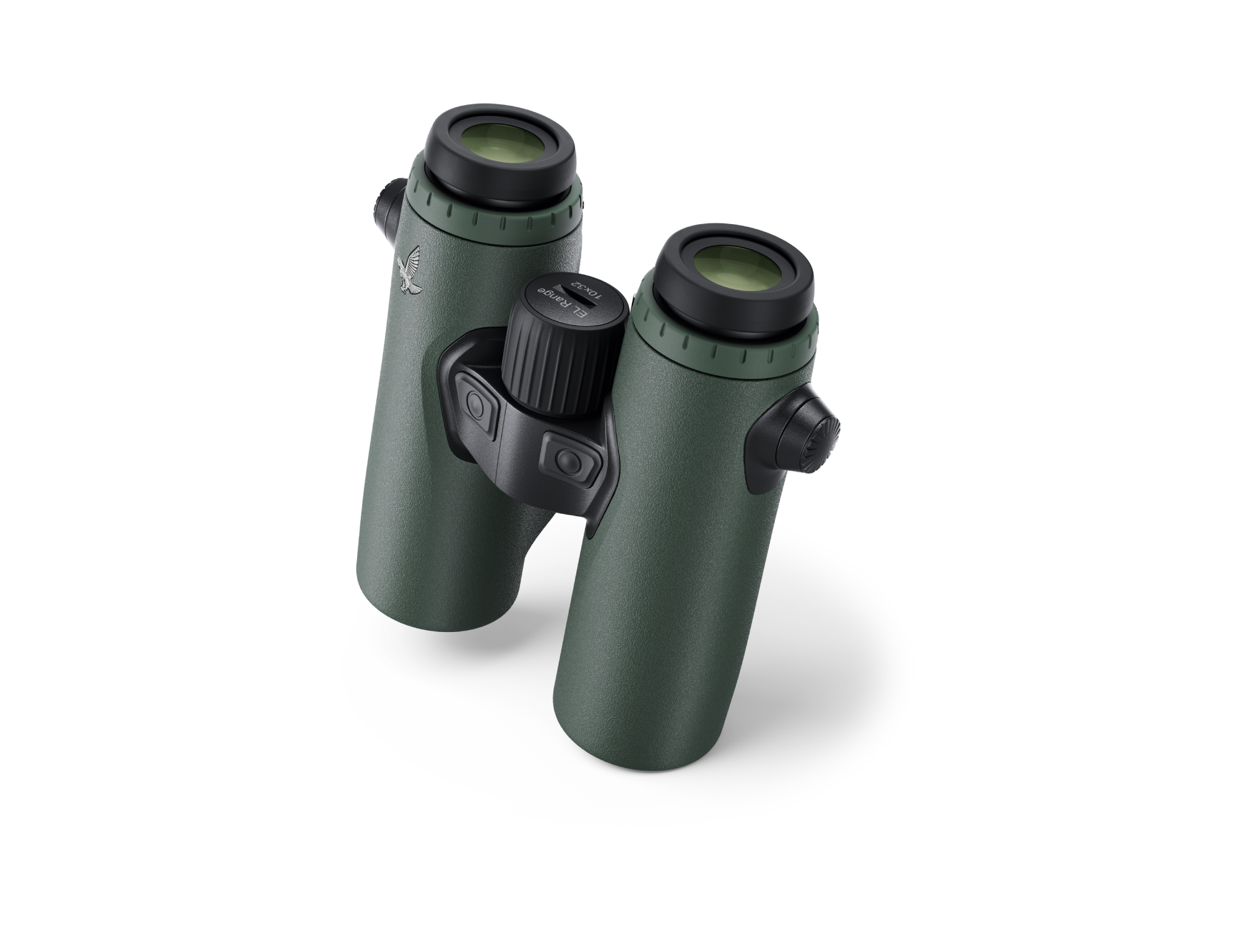

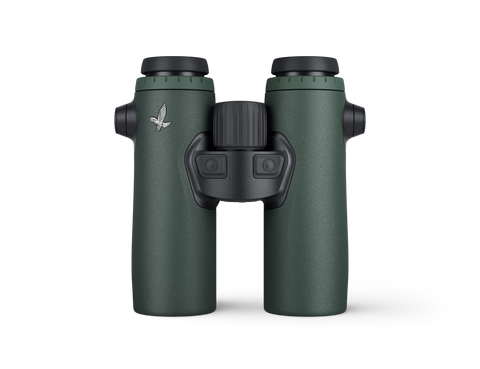

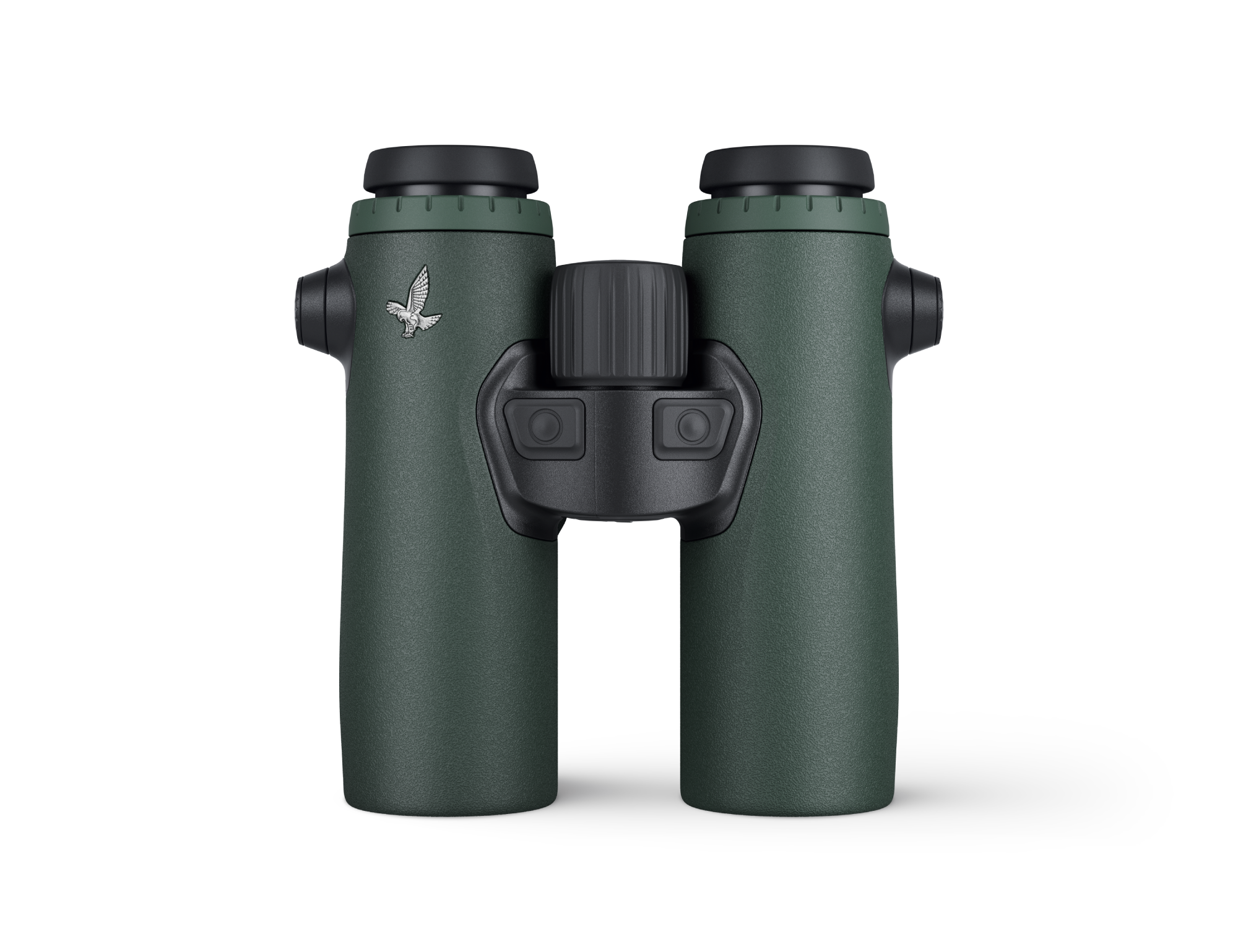

The two buttons (measurement and mode) are positioned on top of the bridge. For even greater flexibility and customization, the EL Range Configurator app allows users to select whether the left or right button is assigned to the measurement function. The other button then becomes the mode button. By default, the right-hand button is set to measurement.
The mechanical concept of the Swarovski EL Range 8x32 comprises a complete package of ergonomics and lightness. A single bridge provides space to allow easy operation even for users with larger hands. The magnesium technology that has been tried and tested in the EL Range 42 has once again been selected for the housing. The EL Range Configurator app automatically detects which EL Range model (32 or 42) is being used. With its larger objective lens aperture and excellent twilight performance, the EL Range 42 is an ideal all-round device for hunters. The Swarovski EL Range 8x32 impresses in challenging hunting scenarios such as mountain hunts, thanks to its compact dimensions and light weight. For everyday hunting situations, the Swarovski EL Range 8x32 also offers users a small and lightweight optical instrument that can be combined with a thermal imaging device.
The binoculars combine state-of-the-art optics with precise measuring functions.

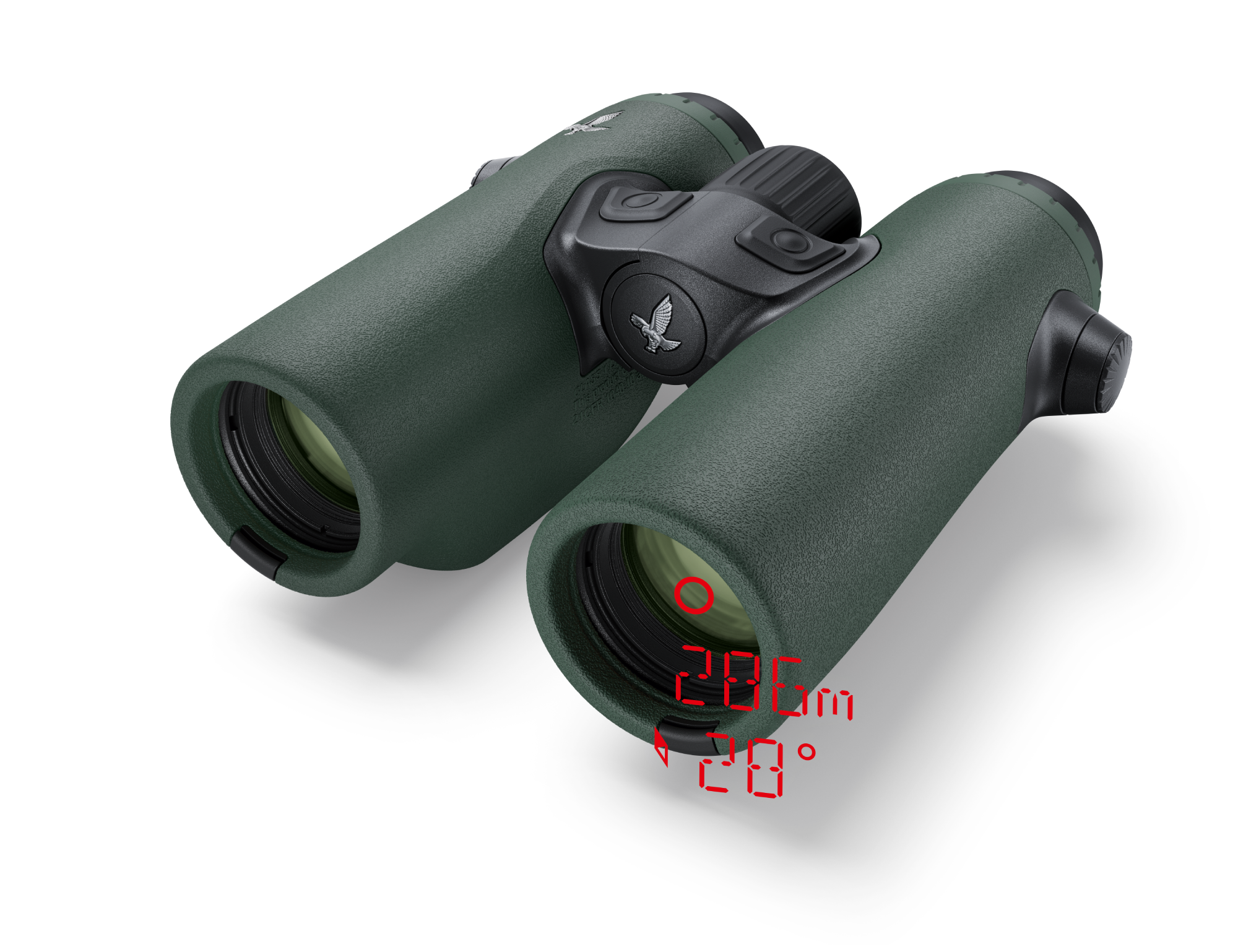

The integrated tilt indicator with a unique angle shot program displays either the adjusted shooting distance or the angle. The EL RANGE gives you precise measurements from a distance of 10 meters (10.9 yards).
Use the smartphone app to configure the binoculars to your specific needs and individual ballistics data. Based on this and atmospheric data such as air pressure and temperature, it helps you to shoot with even greater precision because, along with the adjusted shooting distance, it also gives you the number of clicks needed for your rifle scope.
The integrated Tracking Assistant makes it much easier to track your prey by guiding you to where you fired your last shot. You can opt to use this program via your phone or your EL Range.
Effective objective lens diameter: 32 mm
Exit pupil diameter: 4 mm
Exit pupil distance: 17 mm
Field of view at m/1,000 m / ft/1,000 yds: 405 ft/1000 yds
Field of view degrees: 7.7 °
Field of view with eye glasses (degrees): 7.7 °
Field of view apparent: 60 °
Shortest focusing distance: 16.4 ft
Diopter adjustment: -7 to +5 dpt
Light transmission: 90 %
Pupil distance: 2.2-2.9 in
Twilight factor acc. to DIN-58388: 16.0
SIZE & WEIGHT
Lenght: 5.8 in
Width: 5.1 in
Height: 2.7 in
Weight without batteries: 24.2 oz
Measuring range: 10 - 1640 yd
Measuring accuracy in yds./ m.: ± 1 yd
Measuring time: ≤ 0.5 s
Angular measurement: ± 90 °
Laser: Class 1 EN/FDA
Units: Yard / Meter
Life cycle 2,000 measurements
ENVIRONMENT & CONDITIONS
-13 to +131 / +14 to +131 °F
- FSB functional sidebag
- UCS-R universal comfort strap with battery compartment
- Eyepiece cover
- Objective lens cover
- BT tool
- Microfiber cloth
- Soap & Brush
