SAFRAN Vectronix, a well known and trusted supplier for military and special forces, has developed the TERRAPIN X to the same high standards as all of their battlefield proven products. Get maximum performance with their most reliable and powerful commercial laser rangefinder ever.
Highlights include 3,000+ meter range performance, ballistics powered by Kestrel and Applied Ballistics, and 28mm premium optic.
The 8x magnification allows you to observe and target objects in greater detail. Especially on ranges above 500 yards this magnification is essential to make the right decisions.
Digital Magnetic Compass
The built-in compass enables our unique algorithm to calculate various distances. For example, the height or length of a building or the distance between two objects.
Rugged Rubber Armoring
The TERRAPIN X is built for extreme outdoor conditions. Using battlefield proven materials, RYTON plastics in combination with a special rubber armoring, provide maximum protection from water, dust and accidental drops.
3V CR123 Battery (1X)
One battery suffices for 4,000 measurements without Bluetooth and for up to 1,500 measurements with Bluetooth activated. This battery type is available in most local stores.
28mm Premium Optic
The TERRAPIN X gathers up to 25% more light than other compact rangefinders. Get more resolution, see more details and use it even under low light conditions. Both the color authenticity and contrast performance of the built - in optics meet the highest possible standards.
905NM Precision Laser Reaching 3,000m / 3,280yds
Reaching extreme distances will give you maximum freedom in the field of usage. The target will no longer be limited by your rangefinder. Class 1 eye-safe precision laser technology.
The built-in Bluetooth module provides a stable wireless connection between your smart device or Kestrel meter and the TERRAPIN X. Works within a range of up to 10 yards. Use the mobile app, KESTREL® ballistic solvers supporting LiNK protocol, or other products.
Model: TERRAPIN X
Package Contains: TERRAPIN X, user manual (multilingual), quick start guide, neck-strap, travel bag, lens wipe, battery coin, battery
Field of view: 5.8° / 103mil
Objective Diameter: 28mm
Exit Pupil: 3.5mm
Reticle: Electronic aiming mark
Dioptric Setting: ±3 diopters
Twilight Factor: 15
Wireless: Bluetooth 4.1 LowEnergy
Mobile App: Android and Apple
Laser Type: 905nm, class 1 eye-safe per IEC 60825-1 Ed 3.0
Range Capability: 20m to 3,000m
Specified Performance: 2,000m at 2.4m × 2.2m
Target Visibility: 30km
Detection Probability: >90%
Scanning Mode: Yes
±2 m at 20 m to 1,000 m
±3 m at 1,000 m to 2,000 m
±5 m at beyond 2,000 m
False Alarm Rate: <2%
Resolution on Display: 1m / 1yd
Time per Measurement: <0.5 sec
Repetition Rate: 1.4Hz
Beam Divergence: 1.2mil × 0.5mil
Digital Magnetic Compass
Resolution on Display: 1°
Azimuth Accuracy: 10°
±1° (range of ±30°)
±2° (range of >±30°)
Maximum Inclination: ±1000 mil / ±60°
Declination Adjustable: ±179°
Type: LED (Light Emitting Diodes)
Brightness Control: Automatic
Symbol Block: 1
Data Displayed: Slope distance, equivalent horizontal range, elevation, azimuth
Type: Standard, on-board
Battery: CR123A (3V lithium battery) x1
Battery Capacity: >4,000 measurements
Waterproof: 1 m, 30 min
Operational Temperature: -20° C to +55° C / -68° F to +131° F
Storage Temperature: -40° C to +85° C / -104° F to +185° F
Shock: 100g / 6ms (ISO 9022-30-7-1)
Vibration: 2g; 10Hz to 500Hz (ISO 9022-36-4-1)
Housing: Glass-fiber reinforced RYTON® plastics with elastomer protection
Tripod: ¼"–20 UNC standard tripod interface
Dimensions: 136mm × 118mm × 48mm
Expand Your TERRAPIN X

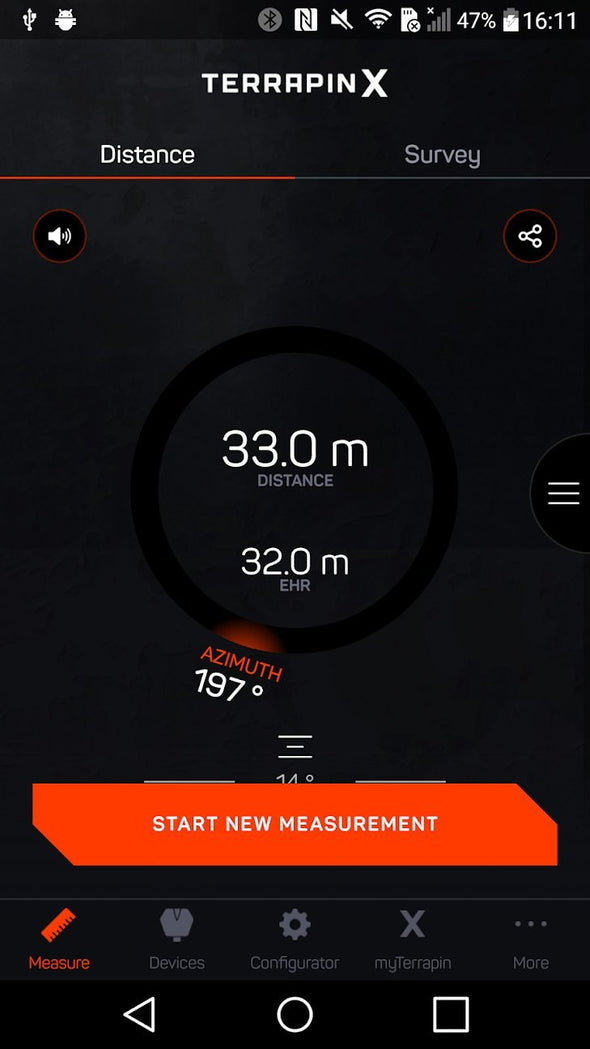

Use your smartphone or tablet as a display. Android and Apple devices compatible.
Easily adjust and update your TERRAPIN X from the comfort of your phone.
Get More Functionality
Enable two point measurements from your device.
Access the Community
Get the latest content and stay informed on the go.
