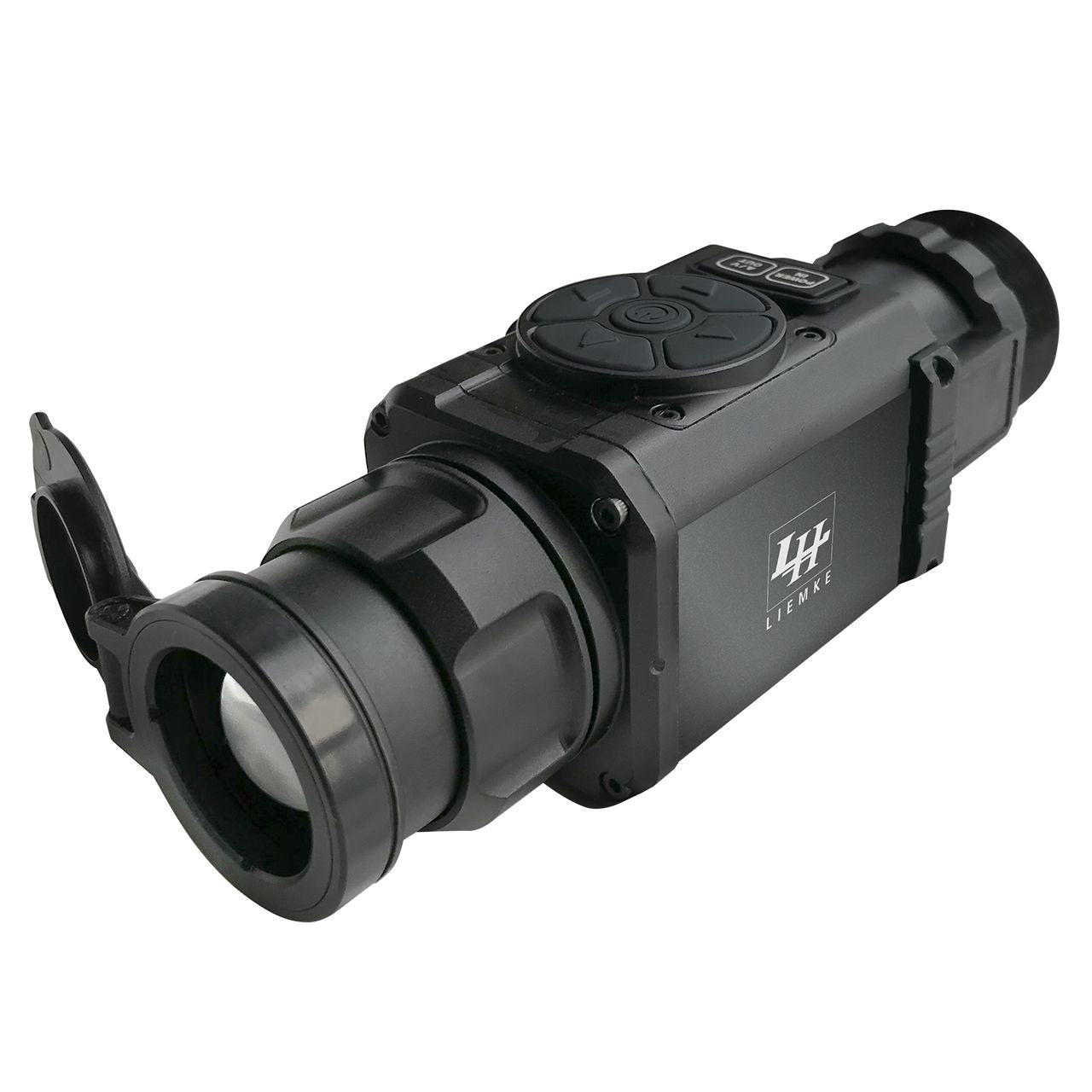

MERLIN-35 (2020) Pre-Mounted Device
The new MERLIN 35 is the all-rounder among multifunctional thermal imaging pre-mounted devices and is ideally suited for both field or forest hunting.
It can be used wit the booster adapter as a hand-held thermal monocular or as an attachment for day optics when combined with the appropriate clamping adapter.
The Liemke MERLIN 35 has a 384 x 288 VOx ceramic thermal detector with a 17µm pixel pitch and improved temperature sensitivity. This, combined with a 1,024 x 768 OLED display, results in a brilliant, sharp image with an outstanding imaging performance.
The 35mm objective lens is manually focusable and offers a very wide field of view of 19m at 100m and a detection range of up to 1,235m. When hunting, the MERLIN 35 thermal imaging front attachment offers an excellent overview and a detailed
image, whether used for hand-held observations or as an attachment.
Its robust aluminum housing and compact design, and a weight of only 420g sets new standards among established thermal night vision pre-mounted scopes of this performance class. Especially when used as an attachment, the MERLIN 35 is
incredibly easy to handle.
Thanks to the integrated Wi-Fi function, you can transfer image data from the thermal imager directly to your Android® or Apple® device via livestream at a distance of up to 50m.
The optimized energy consumption of the MERLIN 35 dual use thermal imaging scope provides a battery life of up to 4 hours (2 x CR123 / 3.7V). Additionally, the Liemke MERLIN 35 can be operated and charged via an external USB power source.
The robust housing ensures a simple and intuitive operation even when wearing gloves.
In accordance with strict regulations, the thermal imaging front attachment is certified according to IP66 standards to provide optimal protection against dust and heavy rain.
With its extensive technical features, and simple and intuitive operation, the MERLIN 35 thermal imaging scope attachment is a leader in its performance class.
When buying this thermal night vision device you will receive a 3-year warranty.
Vision frequency: 50 Hz
Size: medium to large
Resolution: 384x288 Pixel
Lens size: 35mm
Admission function: Yes
Weight: up to 600g
