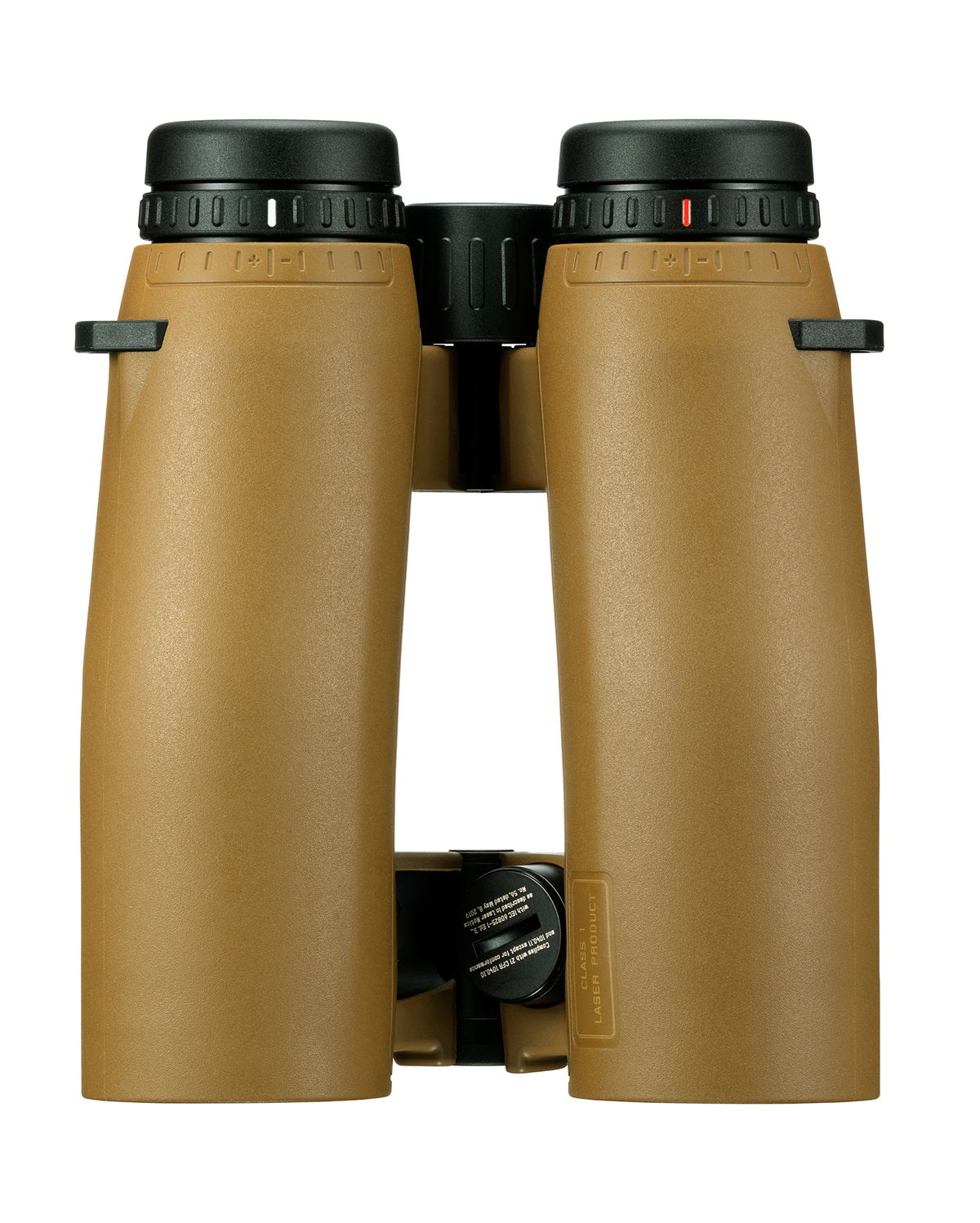

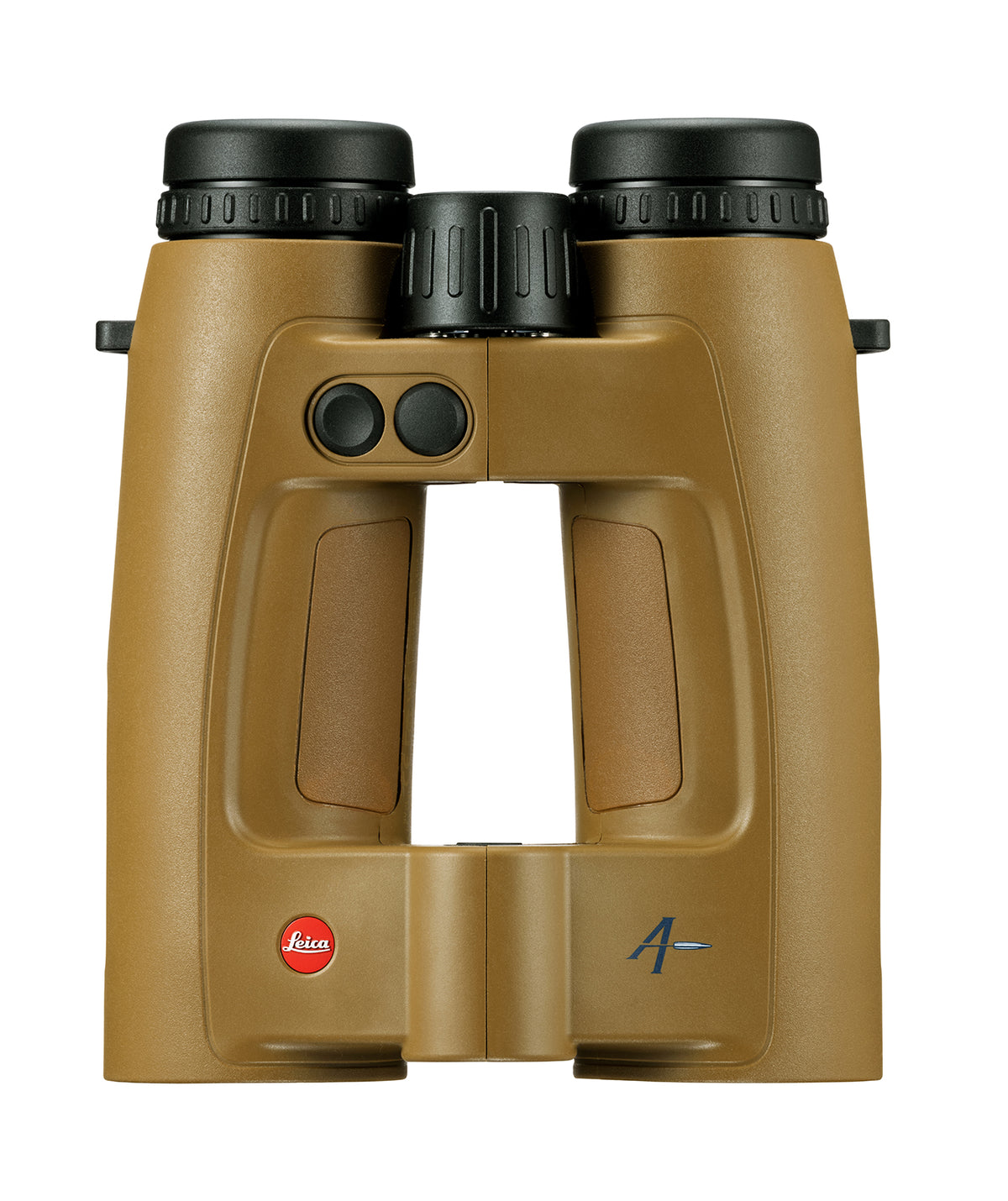

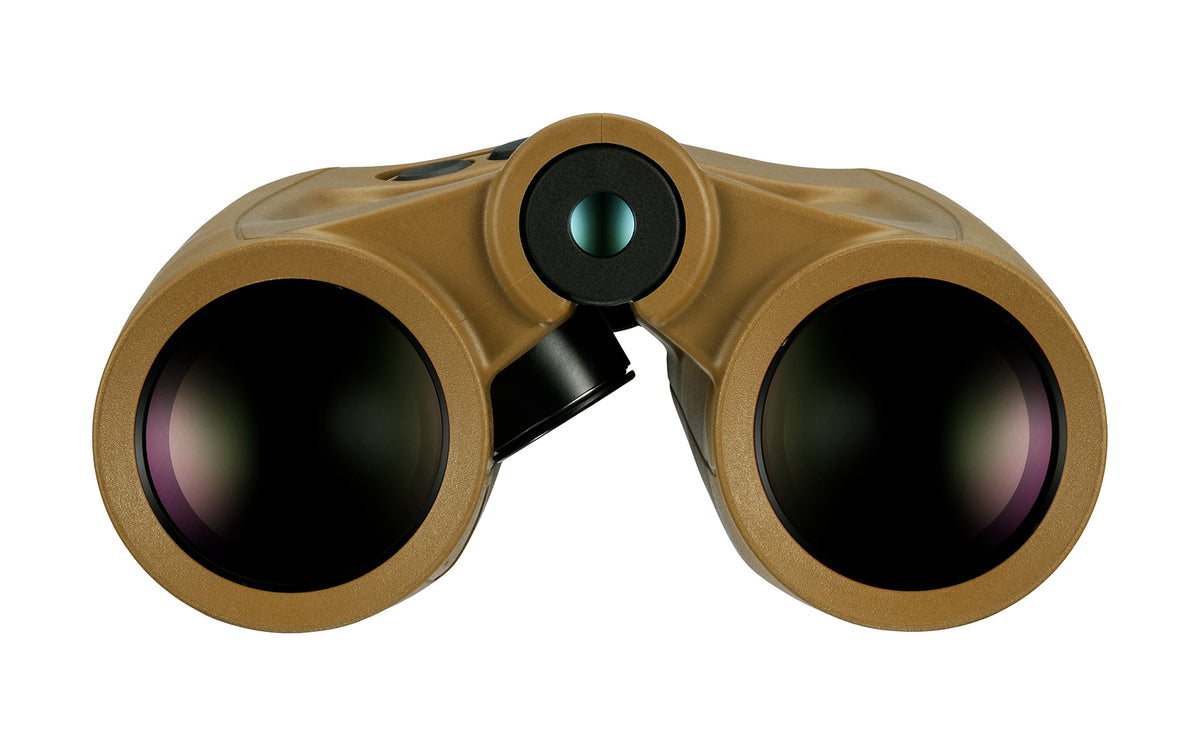

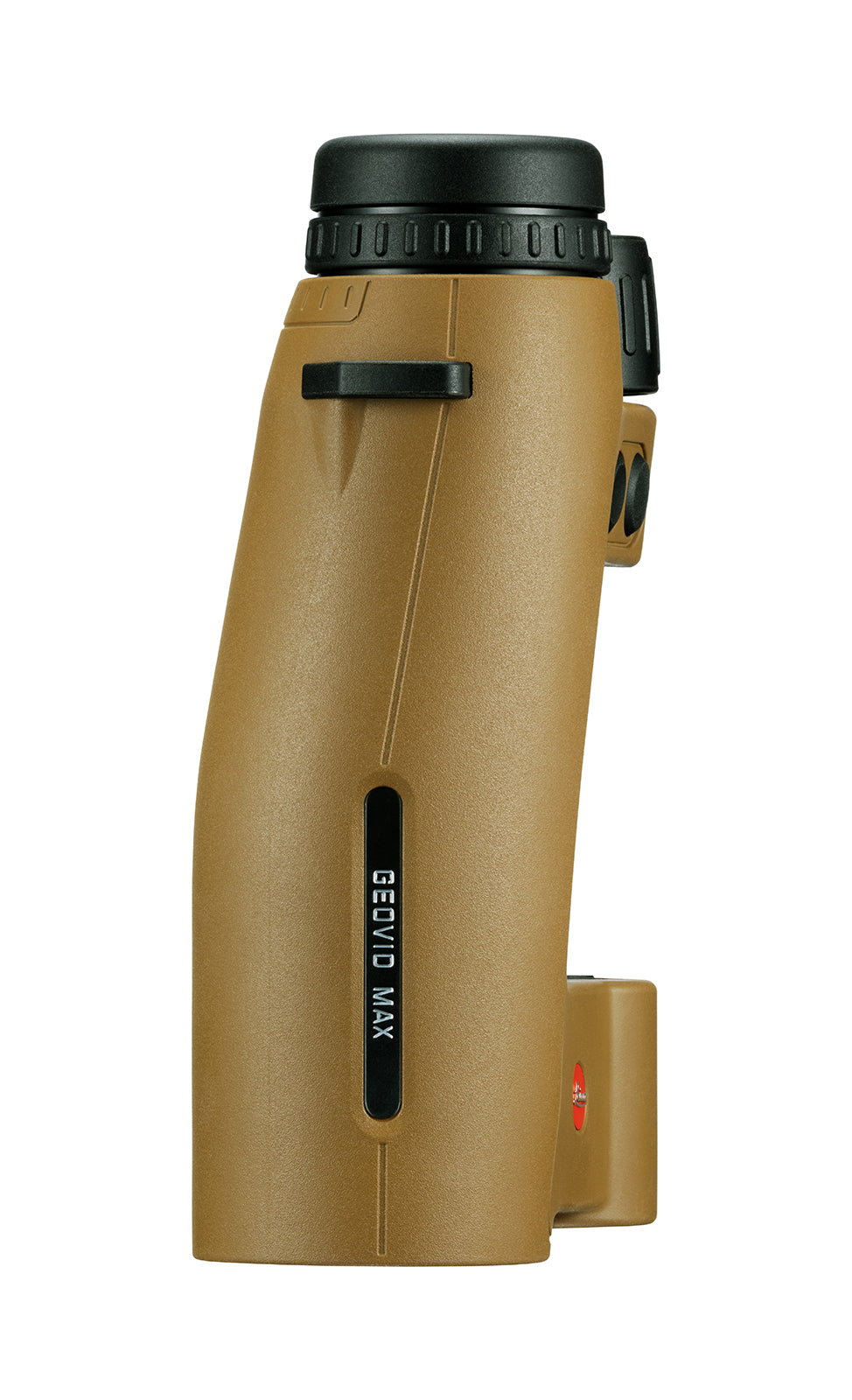

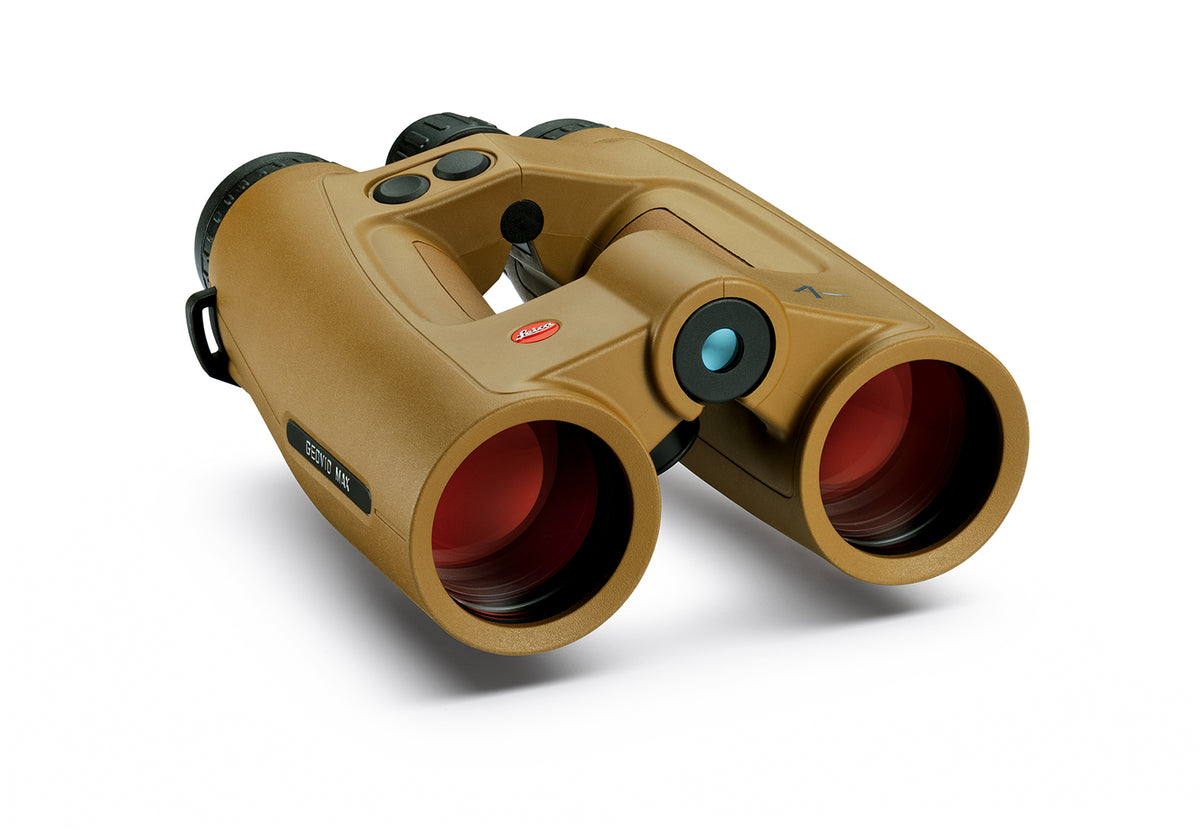

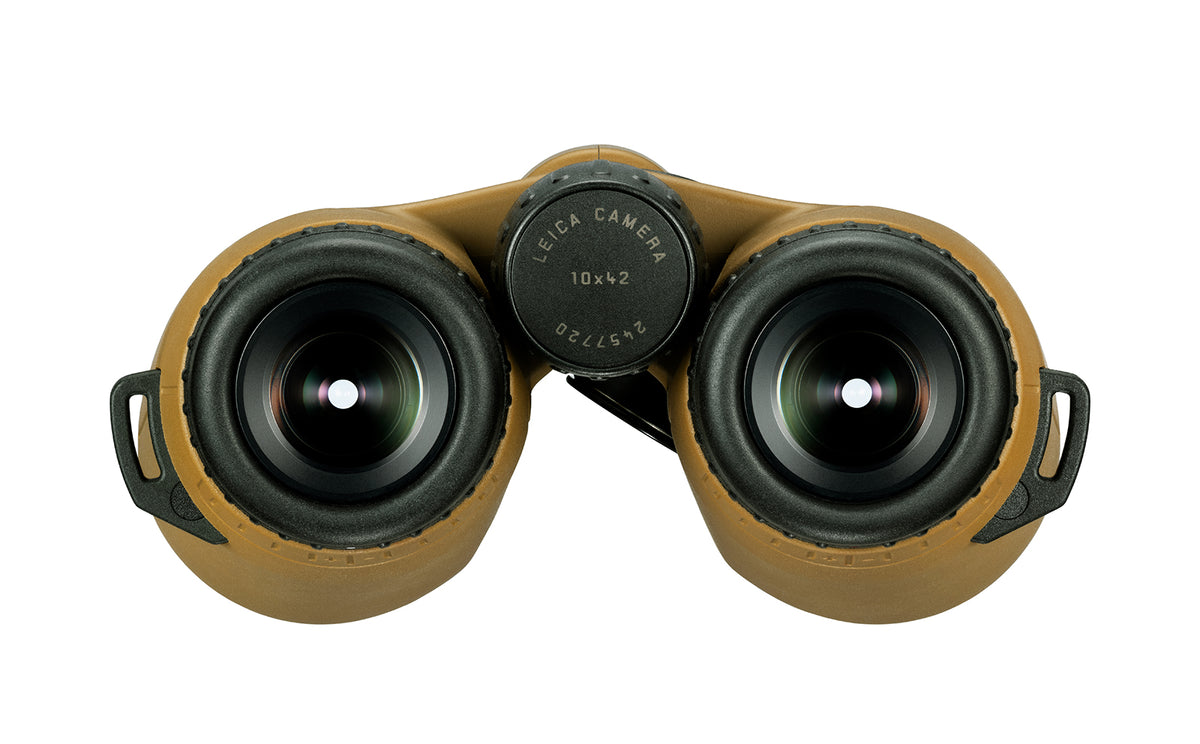

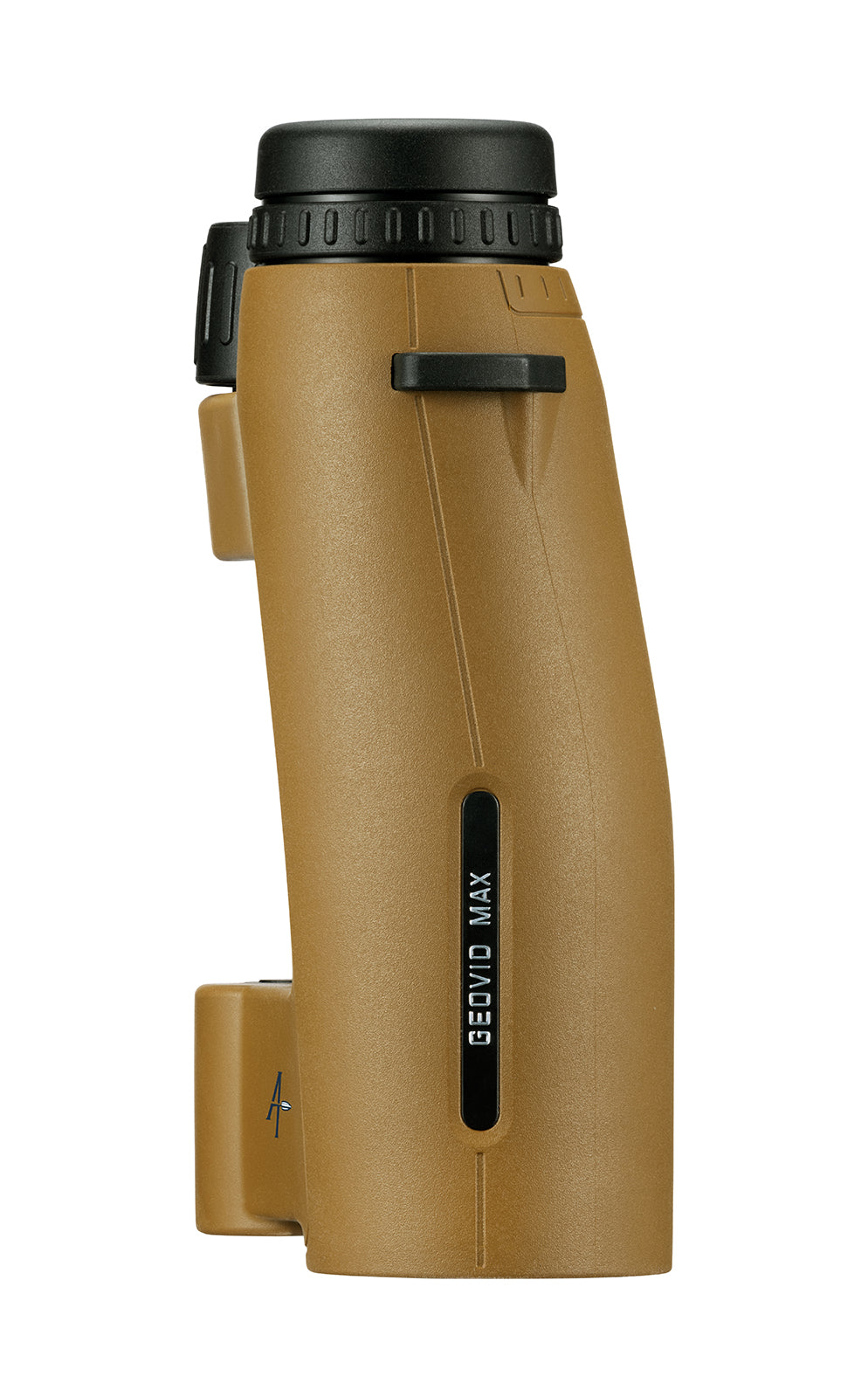

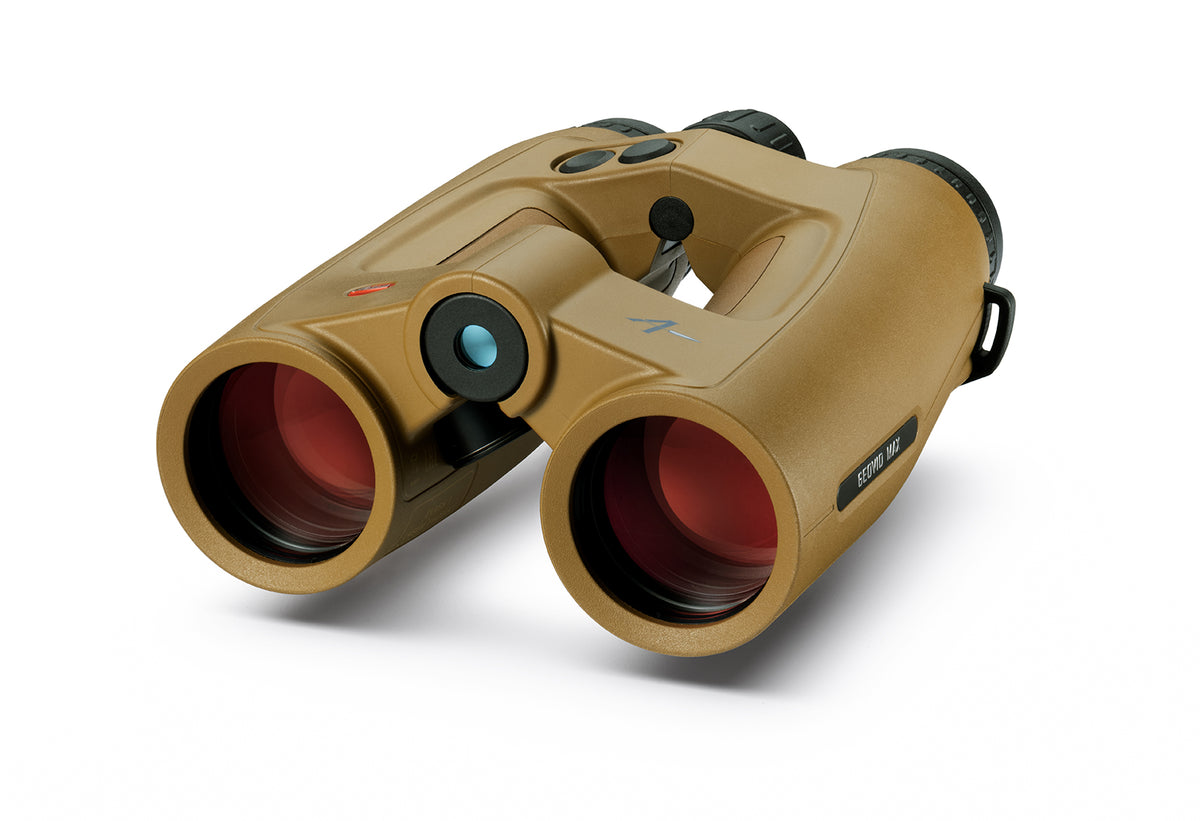

Leica Geovid Max 10x42 40831

Precision has always been the benchmark - Leica Geovid Max 10x42 40831 pushes it further. Built as a fully integrated field system, it combines a next-generation laser engine for faster, extended, and more accurate ranging with a high-contrast display engineered for immediate clarity in any light. Optically uncompromised, it delivers maximum transmission, edge-to-edge resolution, and durability proven in real backcountry conditions. Ballistics are fully embedded—processing environmental data, trajectory, and WEZ (Weapon Employment Zone) probability in real time. With open integration with leading GPS and mapping platforms, it extends beyond observation to become a complete decision-making tool. This is not incremental improvement—it is convergence. Optics, ranging, ballistics, and navigation operate as one system.

FEATURES:

• All-new, unmatched real-world target ranging to 4600 y, further on reflective surfaces

• Blazing fast: from 'off' to range displayed in .5 seconds

• Industry's brightest, most customizable display, best optics, & toughest build

• All-new, best in class, class 1 eyesafe laser

• World's brightest active-matrix microLED (AMOLED) display, 640x480 pixel size

• Ranges in 0.3 seconds, AB Elite wind & elevation data on any target ranged

• User programmable wind, or live wind updates via Kestrel or Calypso

• GPS target marking with OnX, BaseMap & GoogleMaps

• Customizable HUD Display

• Print custom dope cards

• Selectable Reticle Shapes

• Bluetooth Power Save

• WEZ, Applied Ballistics' Weapon Employment Zone

• Programmable first, best, last target logic

• Links to Garmin & Apple watches, Kestrel & Kestrel HUD, and Calypso


TECH SPECS:

OPTICAL:
Magnification:    10 x
Front lens diameter:    42 mm
Exit pupil:    4.2 mm
Twilight factor:    20.5
Field of view at 1,000 yds / 1,000 m:    342 ft. / 114 m
Eye relief:    16 mm
Objective angle of view:    6.45°
Close distance:    Approx. 16 ft. / 5 m
Adjustable interpupillary distance:    56 to 74 mm
Light transmission:    91%
Diopter compensation:    ± 4 dpt.
Prism system:    Perger-Porro system
Lens coating:    HDC® multilayer coating, AquaDura® coating
Focusing:    Internal focusing via central drive
RANGING PERFORMANCE:
Range Reflective:    Up to 8,200 yds / 7,400 m   [see note below]
Range Tree:    Up to 4,600 yds / 4,200 m
Range Deer:    Up to 1,600 yds / 1,463 m
Min Range:    10 yds
Equivalent horizontal range (EHR):    10 up to approx. 4,600 yds / 4,200 m or better
Correction output with Applied Ballistics Elite® (upgrade):    No limit
Measuring accuracy:    0.5 yds at 10 - 219 yds / ± 0.5 m at 10 - 200 m1.0
Measuring time:    Max. 0.3 sec.
Measuring modes:   Scan mode, single measurement
LASER:
Laser:    Eye-safe invisible laser according to EN and FDA class 1
Laser beam divergence:    1.8 x 0.8 mrad
DISPLAY & EYEPIECE:
Display:    Customizable 640x480 pixel active-matrix microLED
Eyepiece for eyeglass wearers:    Yes
Eyecups:    Yes, rotary sliding sleeve, detachable, with 4 click-stops
POWER:
Battery:    1 x 3 V / Lithium-type CR2
Battery lifetime:    Approx. 2,000 measurements at 68°F / 20°C
BUILD & DIMENSIONS:
Watertightness:    To a depth of 16 ft / 5 m
Housing:    Magnesium, nitrogen filled
Dimensions (W x H x D):    4.9 x 6.9 x 2.8 inch / 125 x 174 x 70 mm
Weight:    Approx. 34.2 oz / 970 g (without battery)
MPN: 40831
