Available April 2025

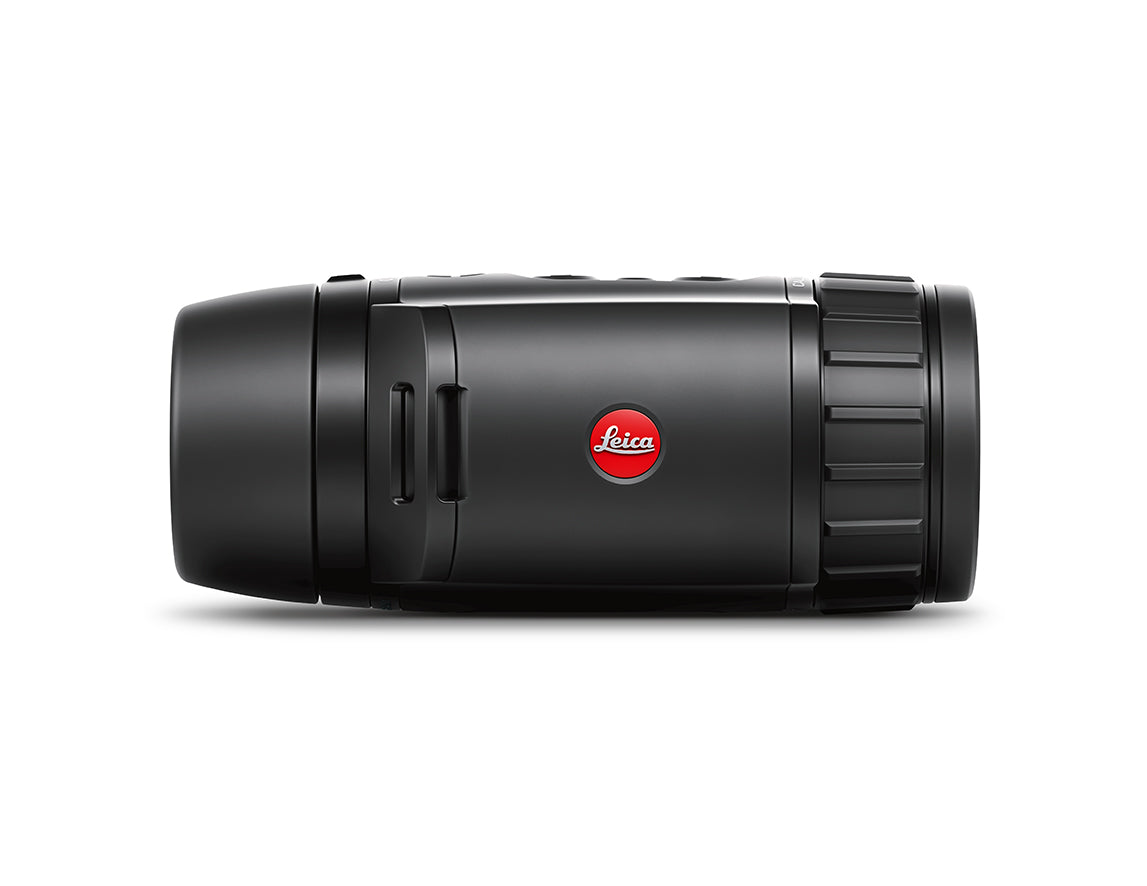

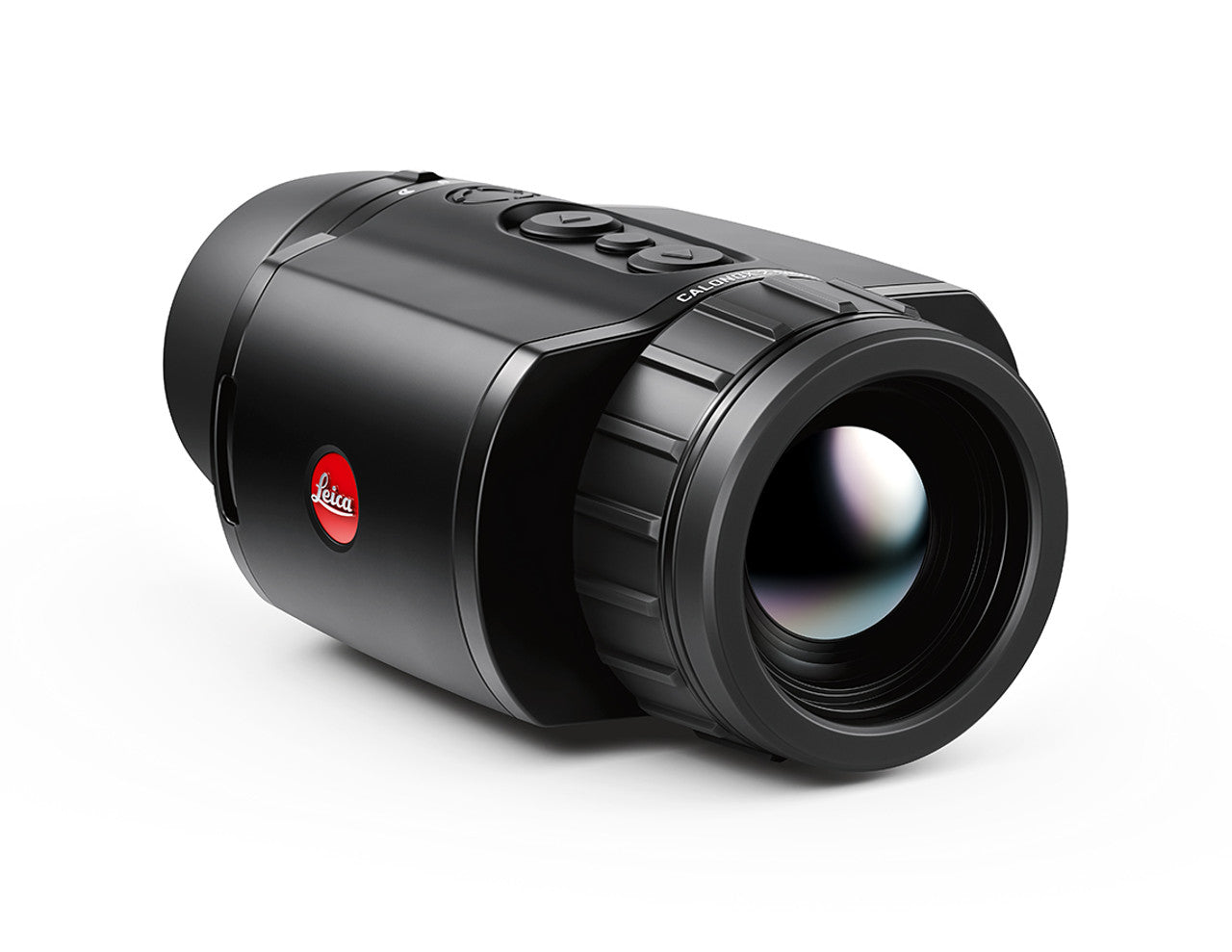

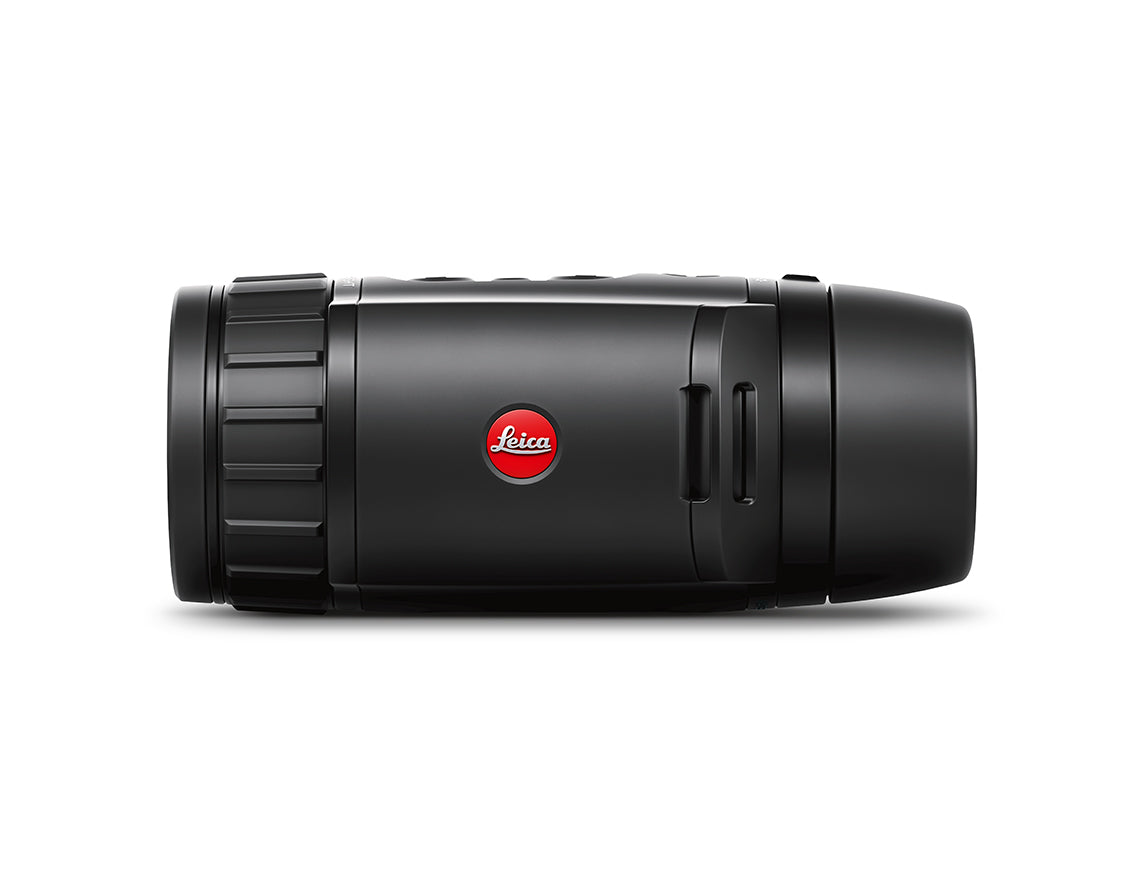

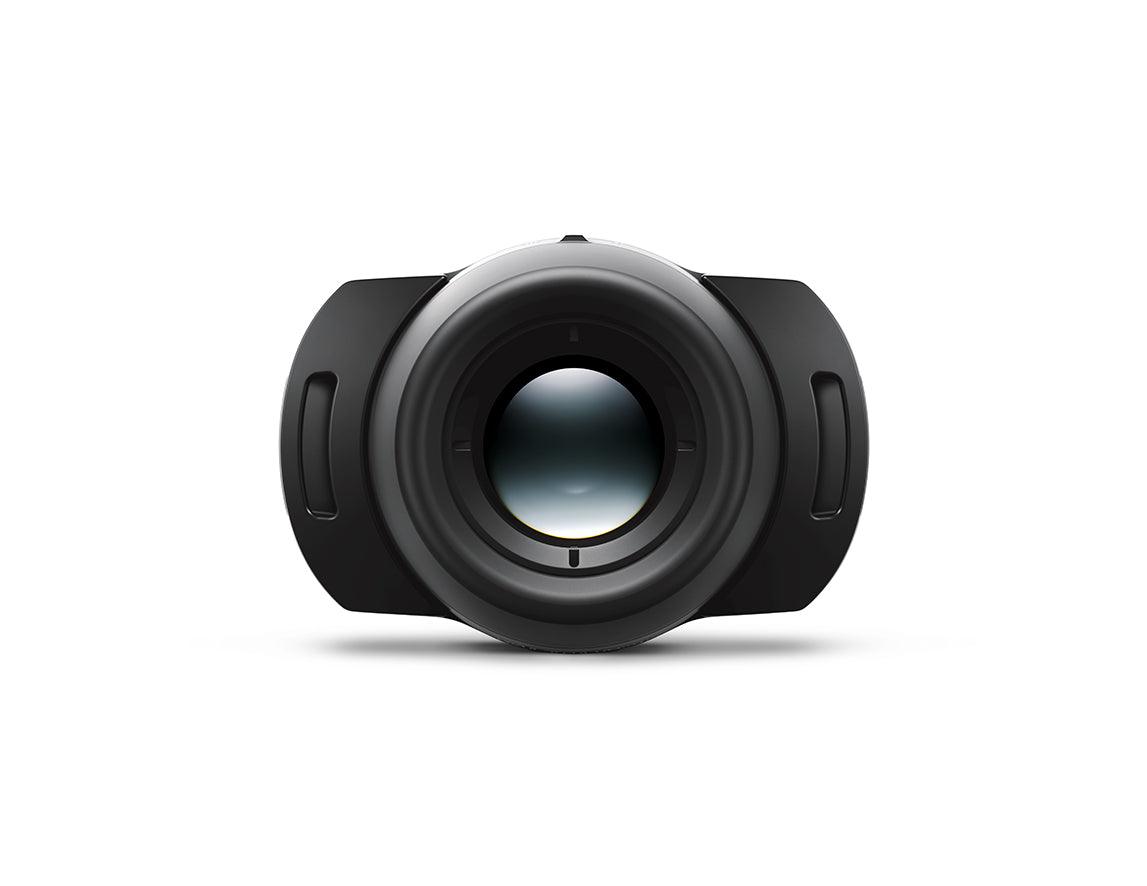

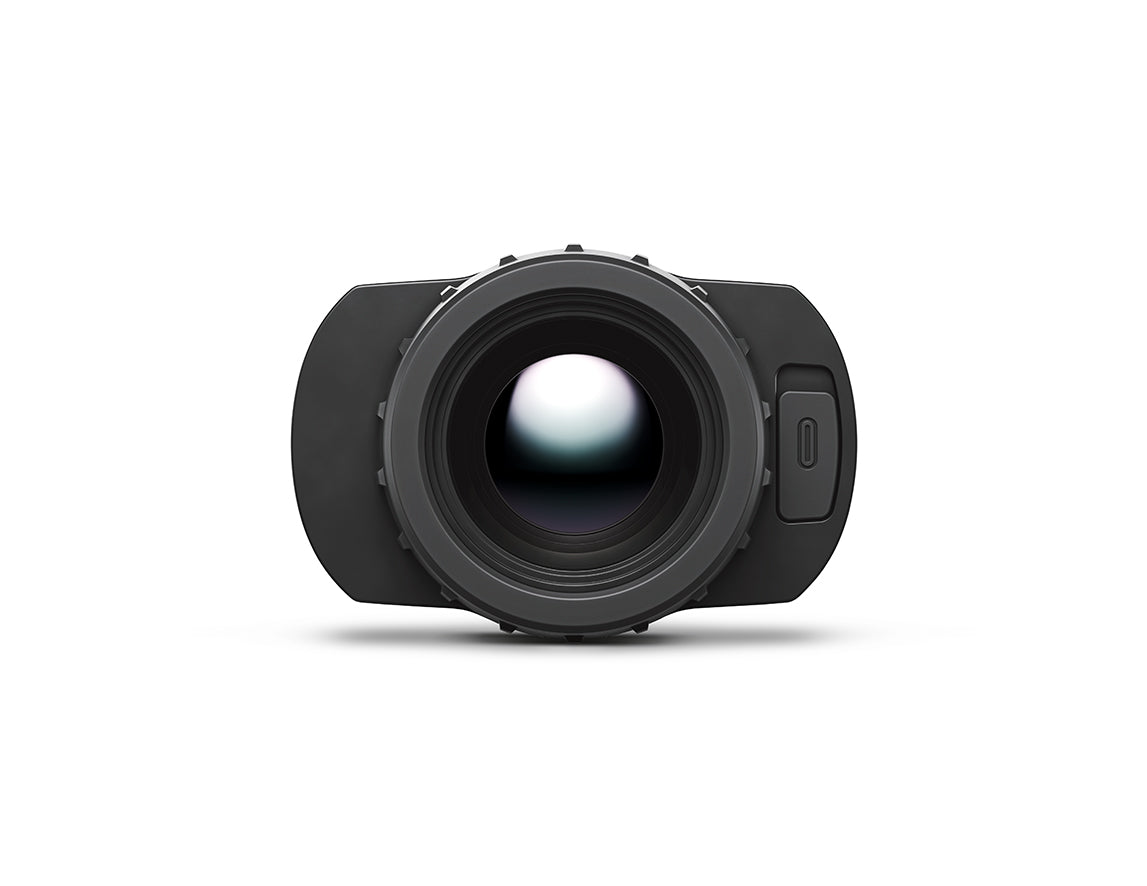

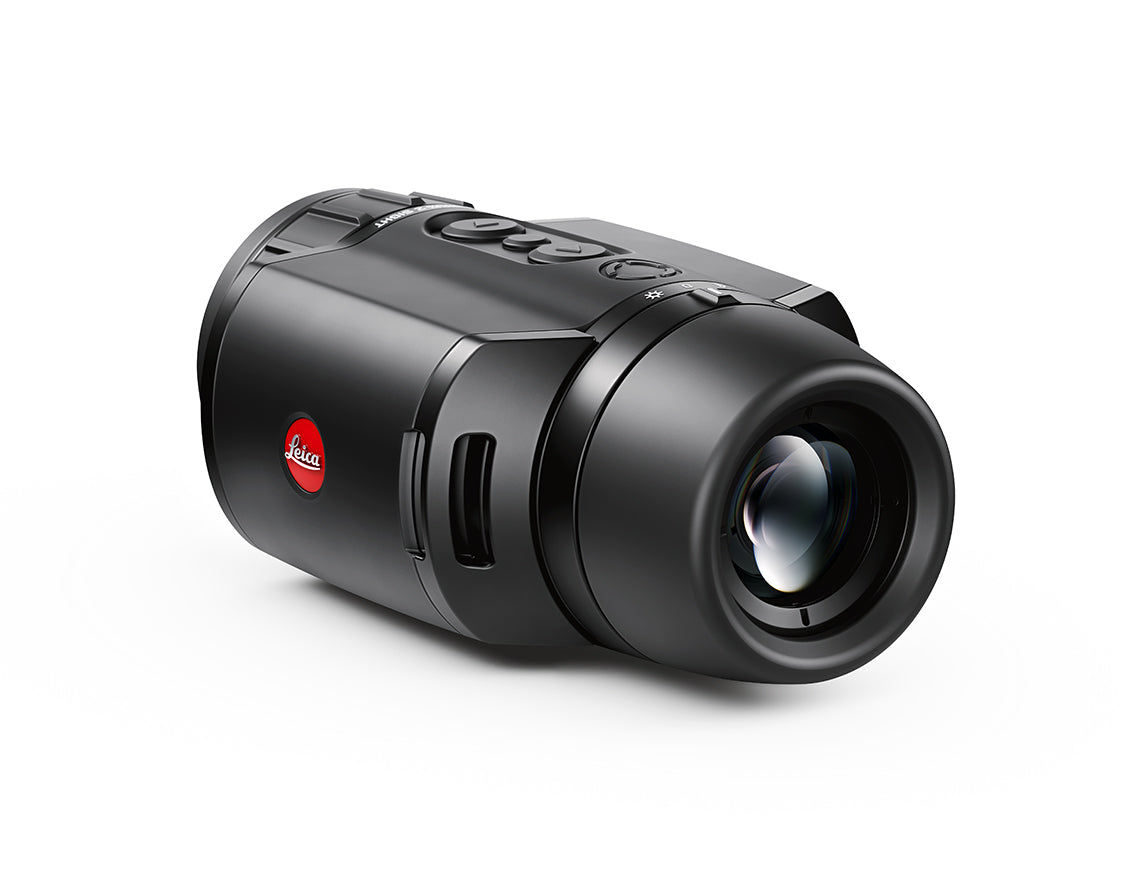

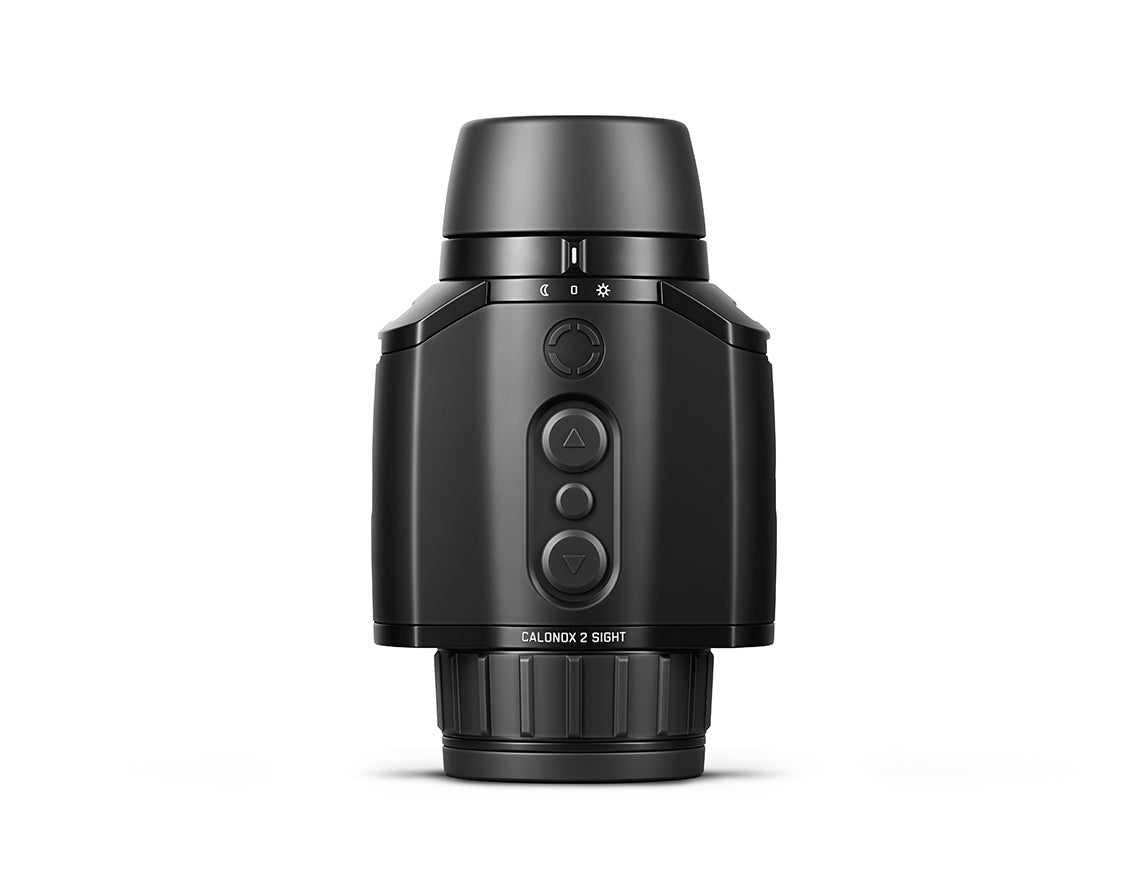

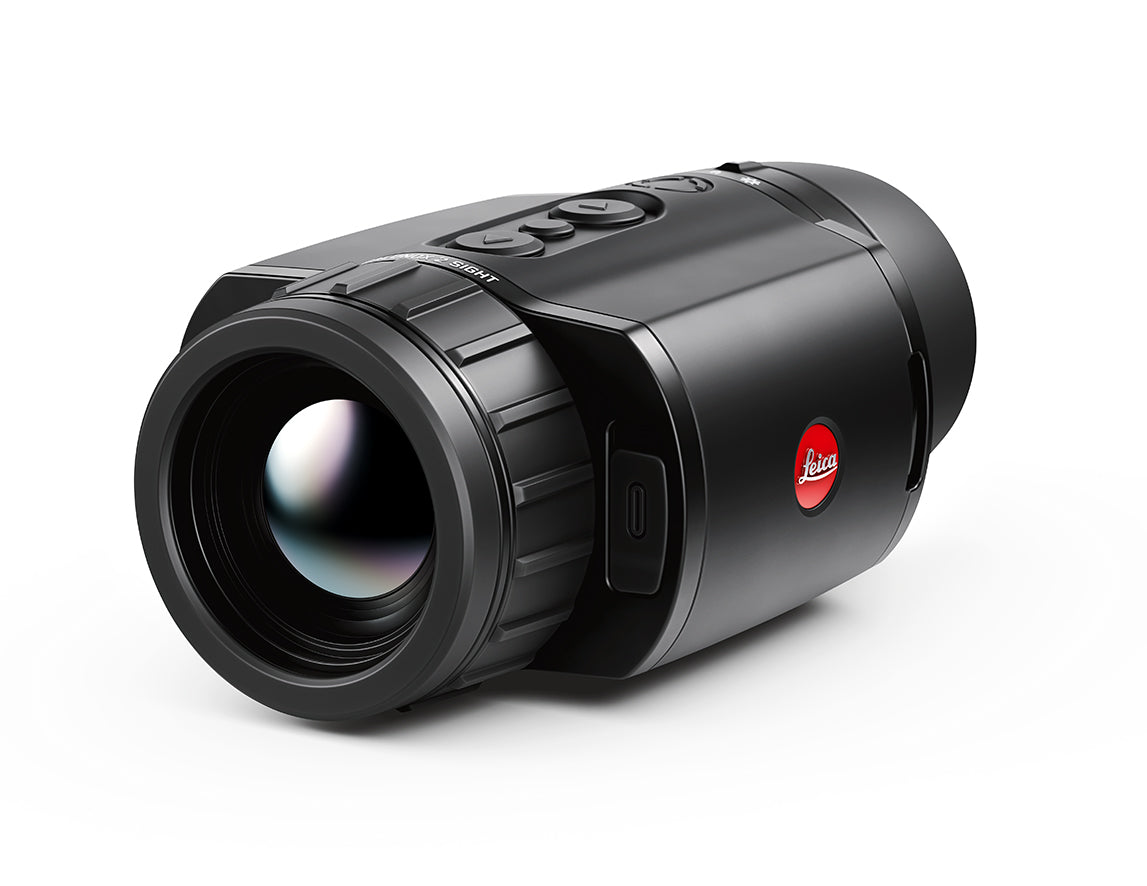

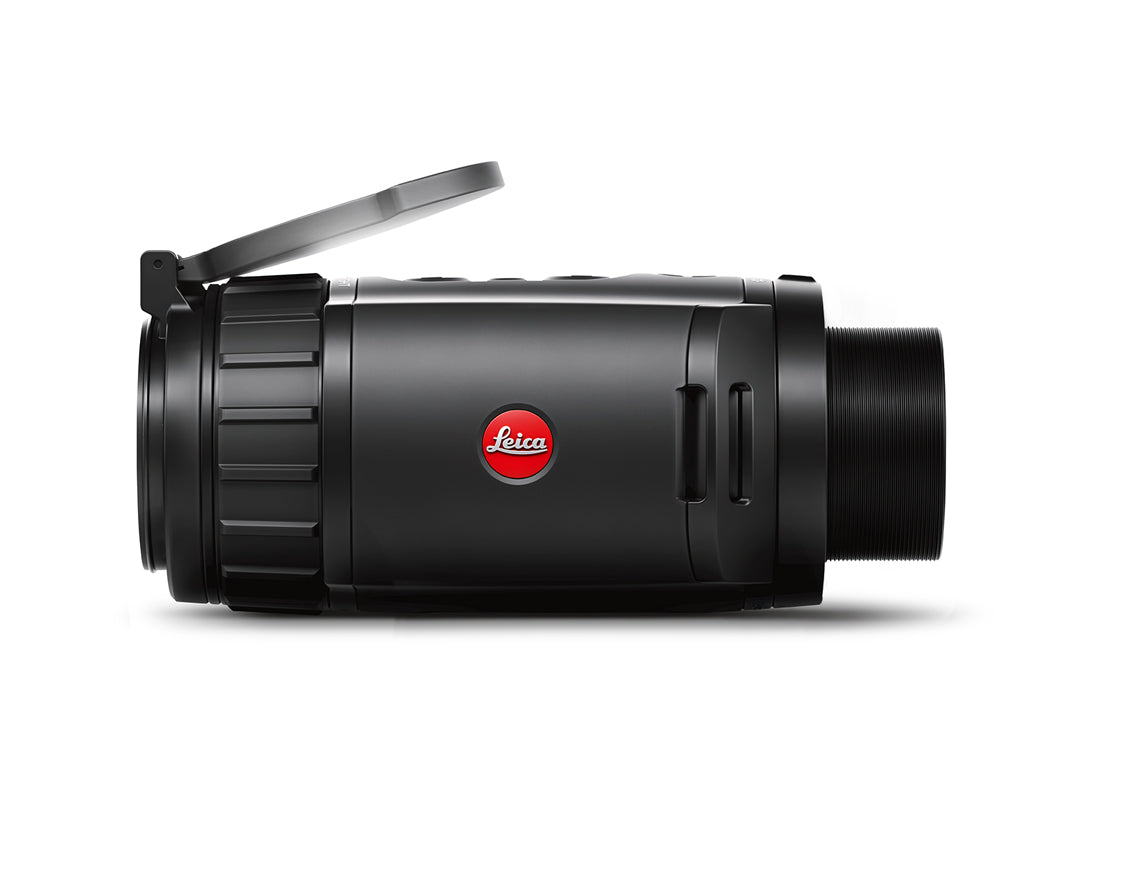

The new Leica Calonox 2 Sight 50511 thermal sighting camera is not just a further development – it’s a genuine benchmark in terms of design and function. Completely designed and made in Germany, it wins users over with its compact ergonomic shape and practical, intuitive operation – it’s very easy, for example, to select day or night mode. The high-quality European sensor from LYNRED, together with Leica’s proven image processing software (Leica Image Optimization – LIO™) ensures even sharper images, rich in contrast and detail. What’s more, the Calonox 2 Sight no longer needs individual calibration, but can be used out-of-the-box and swapped between rifles.
Attention: Please observe relevant national legislation.
- The Essentials:
- Entirely designed & made in Germany
- Light and compact construction
- No rifle calibration needed (out-of-the-box use)
- Large field of view and very detailed image, optimum viewing comfort
- Extremely easy operation with a few intelligent buttons
- Ready for use within seconds of switching onAdapter mount with M52 x 0.75 thread.
- Up to 10 hours battery life

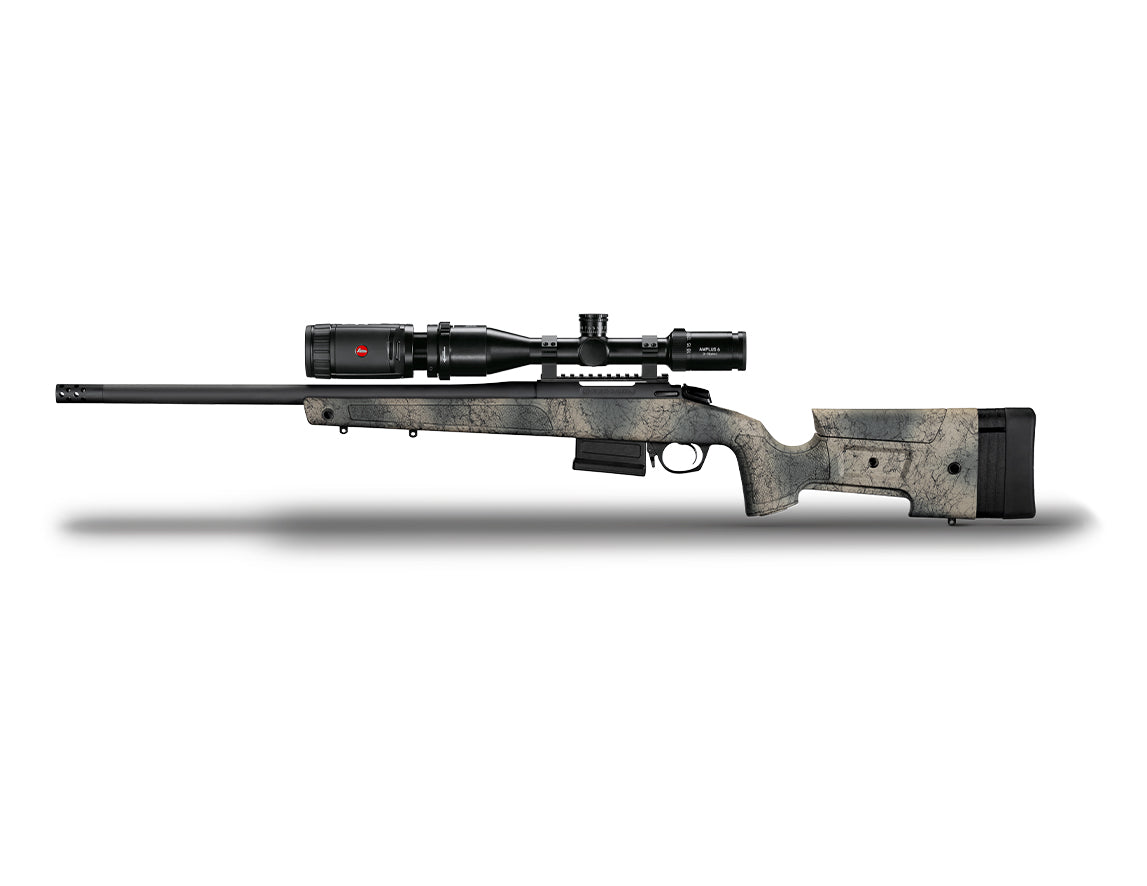

- Compact unit e.g. with the all-round riflescope Leica Fortis 1.8-12 x 42 i for
night hunting
- Dual-use capability: sighting and observation device
- Adapter mounting with M43 x 0.75 thread
SPECIFICATIONS:
Sensor Type: VOx
Sensor Size: 640 x 840 pixels
Pixel Size: 12 µm
Screen Type: OLED
Screen Diagonale: 0.49”, active area 0.35”
Screen Resolution: 1280 x 960 pixels
Image Repetition Frequency: 60 Hz
Lens Focal Length: 42mm/1.1
Thermal sensitivity NETDh: < 40 mK
Optical Basic Magnification: 1x
Digital Zoom: 1x/2x temporary
Field of View: 10.3° x 7.7° (18 x 13.5 m/100 m)
Diopter Adjustment: No
Acquisition range/Resolution
(Calculated for 1.7m x 0.5m (66.9 inch x 20.0 inch):
2,210 m/2 px (2,417 yrd/2 px)
Detection range/Resolution
(Calculated for 1.7m x 0.5m (66.9 inch x 20.0 inch):
770 m/6 px (842 yrd/6 px)
Identification range/Resolution
(Calculated for 1.7m x 0.5m (66.9 inch x 20.0 inch):
390 m/12 px (427 yrd/12 px)
Adjustment Reticle Correction: not necessary
Video Output: Wi-Fi, USB-C
Video Recording: yes
Video/Picture resolution: 640 x 480 px
Cable Socket: USB-C
Wireless Connection: WiFi (2.4 GHz) + Bluetooth®
Internal Memory: 32 GB
Protection Class: IP 67, nitrogen-filled
Operating Temperature: -20 °C to +50 °C (-4°F to 122°F)
Operating Temperature (Charged Battery): +10 °C to +30 °C (50°F to 86°F)
Battery Life: approx. 8 — 11 h
Battery: 2x 2,420 mA/h not removable
Charging optionsy: USB-C, household plug, power bank, car (cigarette lighter)
Accessory Thread: M43x0.75
Tripod Thread: A ¼ DIN 4503 (¼”), M4 standard thread
Material: fiberglass-reinforced plastic with silicone armoring
Dimensions: 139 x 90 x 61 mm (5.5 x 3.5 x 2.4 in)
Weight (with Battery): approx. 590 g (20.8 oz)
SKU: 50511
