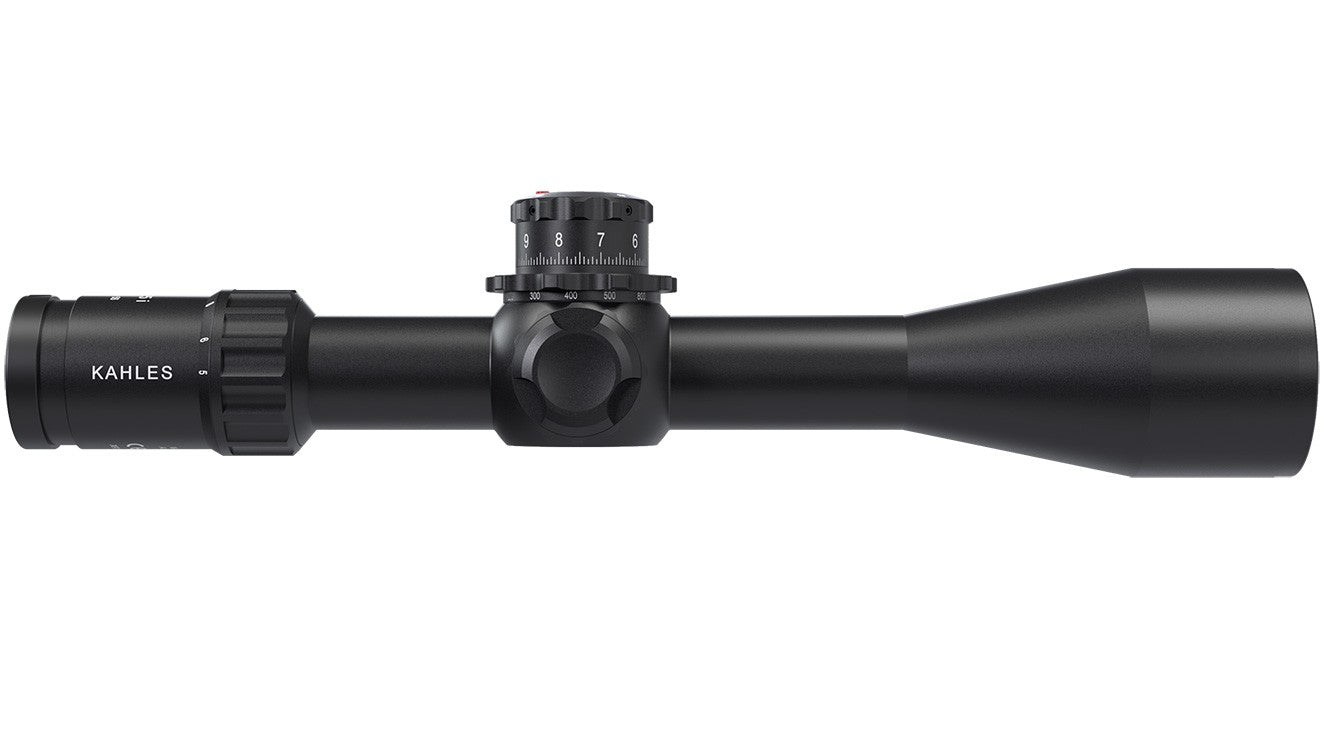

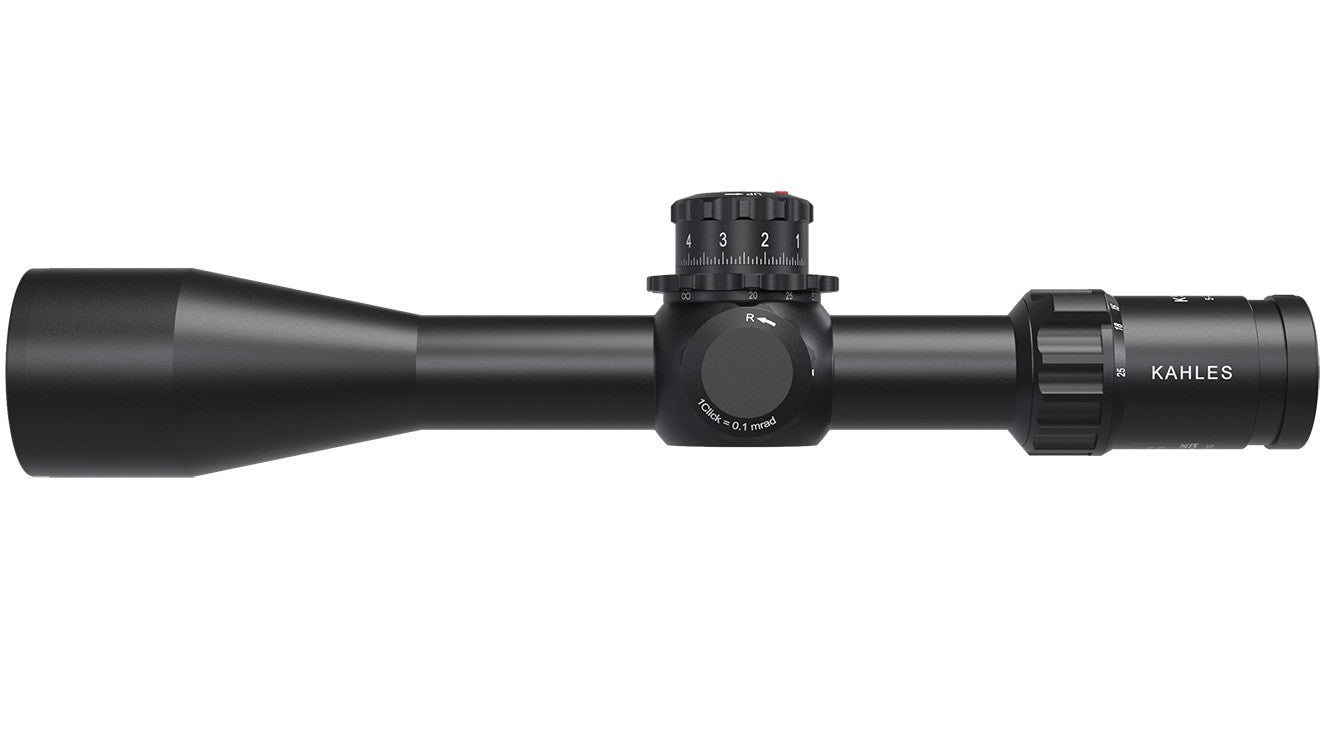

Kahles K540i 5-40x56 DLR CCW SKMR4+ (LSW) 10950

Designed for professional long-range shooting, the Kahles K540i 5-40x56 DLR CCW SKMR4+ (LSW) 10952 sets a bold new standard. Its unparalleled field of view provides maximum downrange clarity and enables seamless target transition, essential in fast-paced scenarios.

NOTE

LSW  (Left Side Windage) is ideal for right handed shooters
RSW (Right Side Windage) is ideal for left handed shooters

CW - Elevation and windage are working clockwise (=сw)
CCW - Elevation and windage are working counter-clockwise (= ccw)

FEATURES

• 10 MIL Windage – increased usability in dynamic environments
• Enhanced Parallax Wheel Geometry – reliable handling in all conditions
• +7% FOV* – improved situational awareness with optimized peripheral perception (*Based on the comparison to K525i (2025))

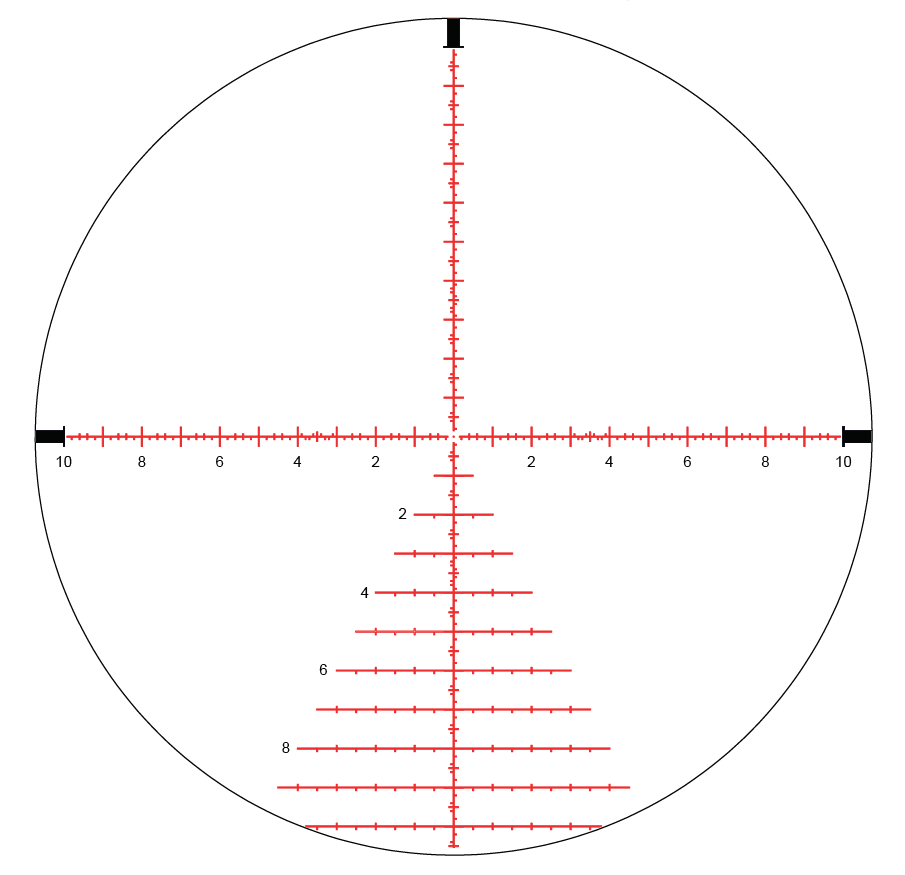

• Updated Reticle Designs – latest SKMR-design

SPECIFICATIONS:

Magnification: 5-40x56i
Objective lens diameter: 56 mm
Exit pupil: 7.7-1.4 mm
Eye relief: 92 mm
Field of view: 10.2 - 1.3 m/100 m
Diopter compensation: +2/–3 dpt
Twilight factor (DIN 58388): 16.7-47.3
Impact correction per click: .1 MRAD
Adjustment range (E/W): 2,9 / 1,2
Parallax adjustment: 20 - ∞

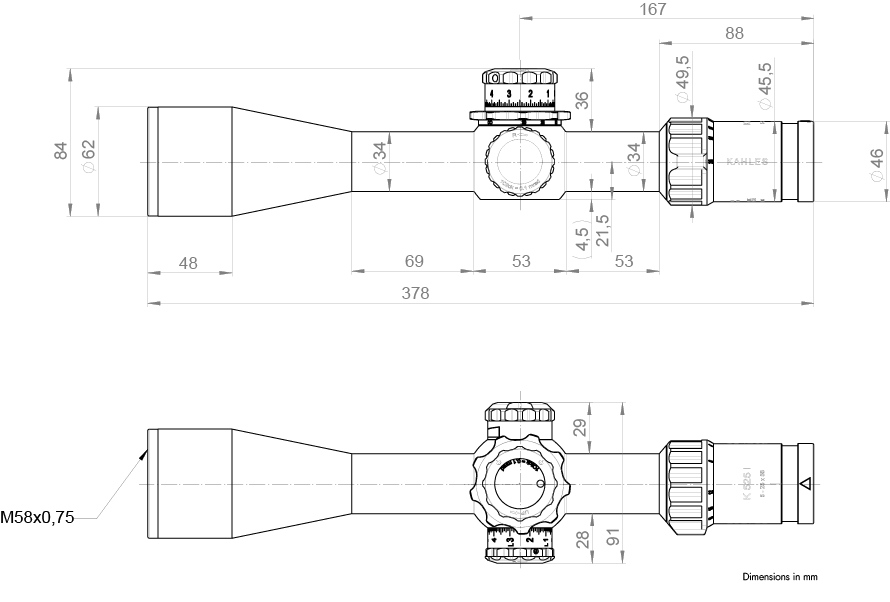

Tube diameter: 36 mm
Length: 408 mm
Weight: 1115 g
Focal plane: 1.
Illuminated: Yes
Warranty: 10 years
SKU: 10950
