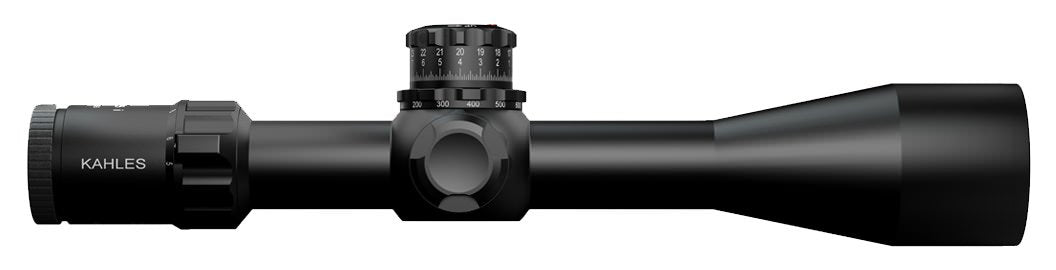

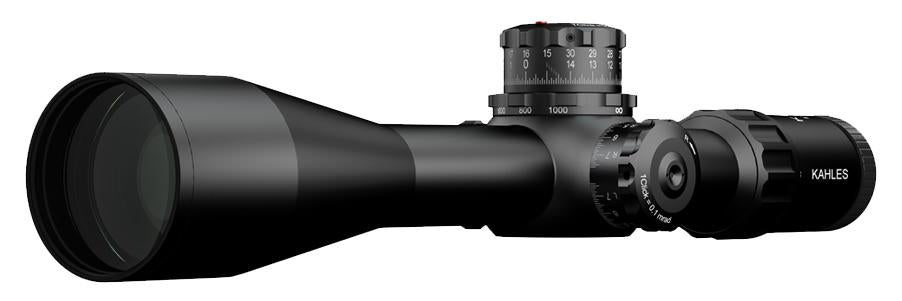

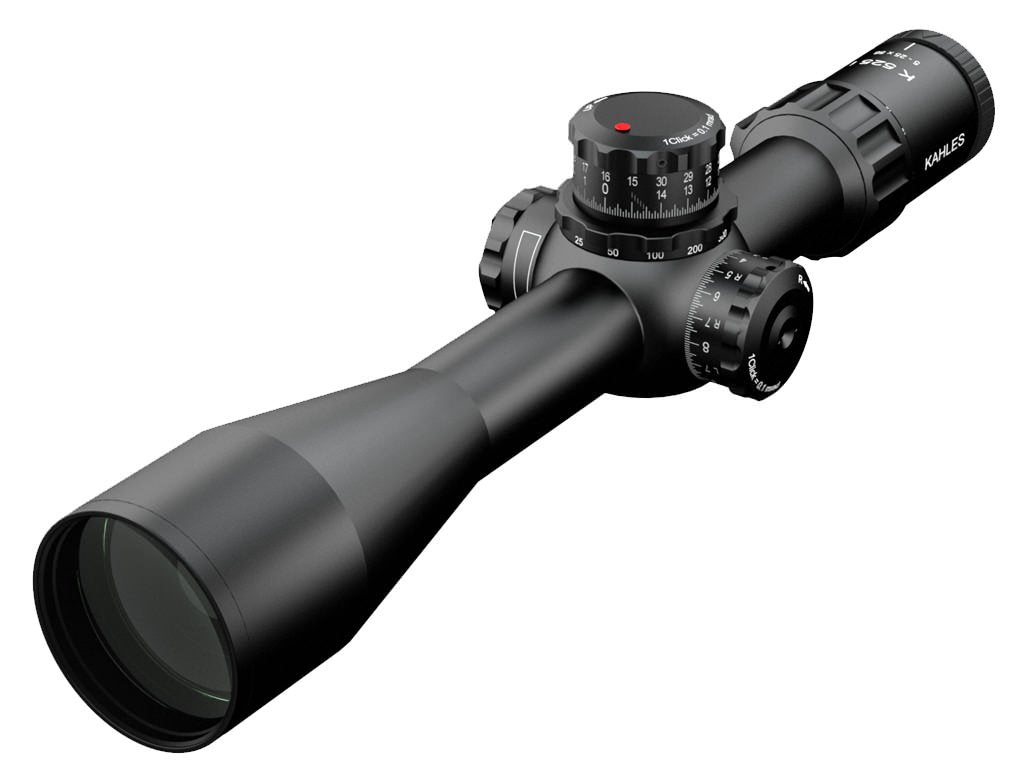

The K525i combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1 st focal plane and the unique TWIST GUARD windage.
LSW (Left Side Windage) is ideal for right handed shooters
RSW (Right Side Windage) is ideal for left handed shooters
- Maximum optical performance – field of view, high contrast image, high definition
- Absolutely reliable repeat accuracy
- Precise and clearly defined click mechanism
- Large adjustment range with 2.9m (E) and 1.3m (W) at 100m
- Optional left or right side windage

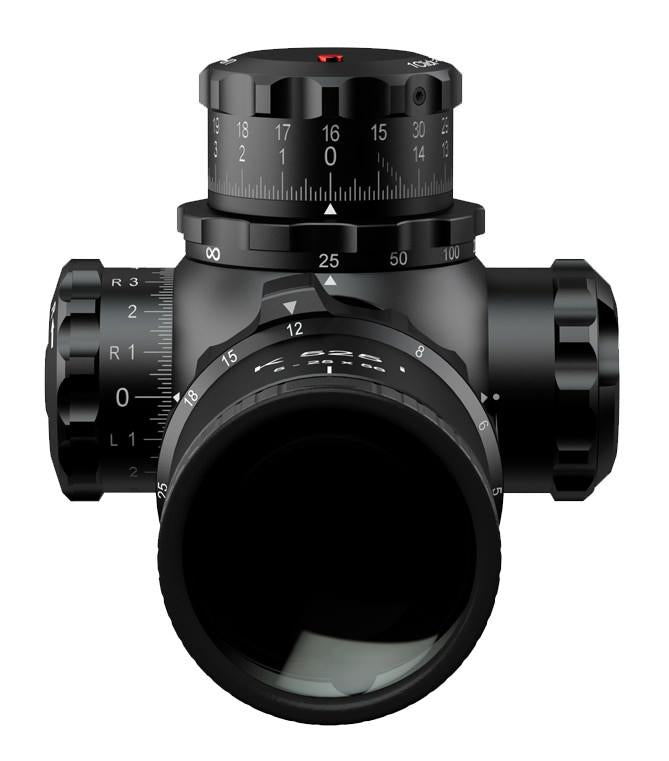

- Parallax wheel integrated into the elevation turret (patented) (20 m to ∞)
- Innovative TWIST GUARD windage (patented)
- Precise illuminated reticle in first focal plane

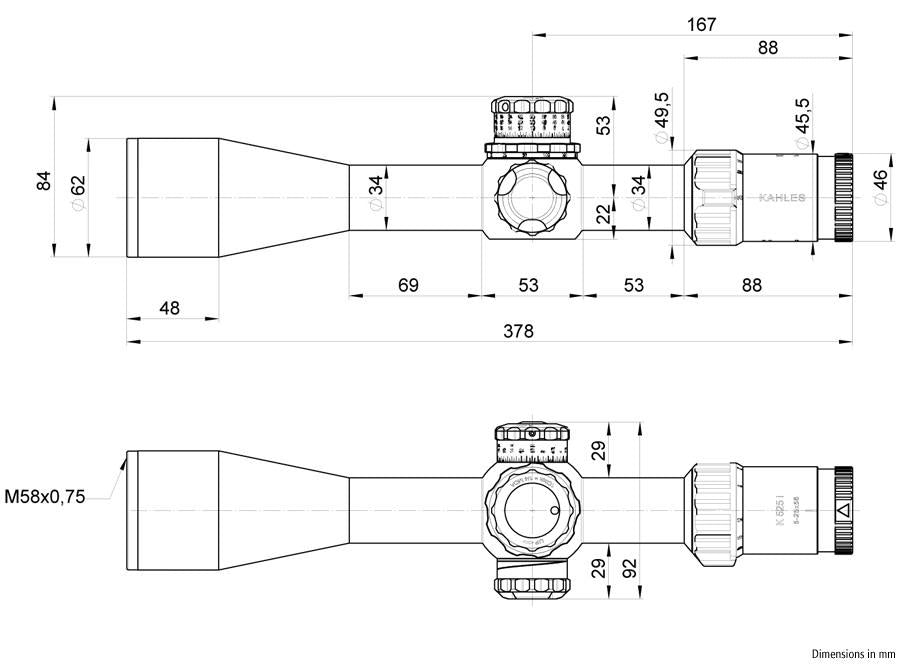

Scope Weight: 34.2oz
Scope Length: 14.8"
Magnification Range: 5-25x
Scope Objective Diameter: 56mm
Scope Tube Size / Mount: 34mm
Impact Correction per Click: 0.36" (100 yds); 1cm (100 m); .1 MRAD
Parallax Adjustment: 20 m to ∞
Adjustment Range (E/W): 104.4 / 46.8in / 100 yds; 100 / 45 MOA; 29 / 13 MIL
Reticle Position: First Focal Plane
Field of View: 21.7' - 4.4' @ 100yds
Eye Relief: 3.74"
Diopter Compensation: +2.0 / -3.5 dpt
Illuminated Reticle: Yes
Scope Finish: Matte Black
Windage: Right Side Windage (RSW)
Kahles K525i Series
The big brother of ultrashort K318i is the new flagship of KAHLES in the field of tactical riflescopes. It combines in an inimitable way maximum optical performance and highest precision with unique handling and ergonomics.
The rugged K525i with its practical magnification range has been developed for tactical use and long distances. It is intended to help ambitious shooters to achieve records. The clearly defined, precise clicks, together with the exceptional repeat accuracy, provide highest precision and reliability.
Due to the unique KAHLES arrangement, all operating elements can easily and comfortably be operated with the intuitively preferred hand, without having to reach over the scope and without having to move out of the shooting position. The patented central arrangement on top of the riflescope makes right- and left-handed operation equally comfortable. Ergonomically the windage is ideally placed on the left side for right-handed shooters and on the right side for left-hand shooters.
The essential information on the turrets is clearly readable from the aiming position. The large adjustment range provides enough reserve for each situation. Consequently, at competitions, the shooter can fully concentrate on the essential.

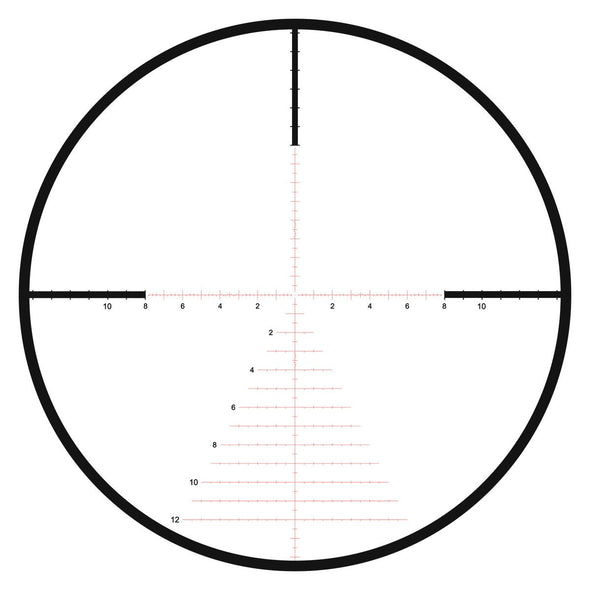

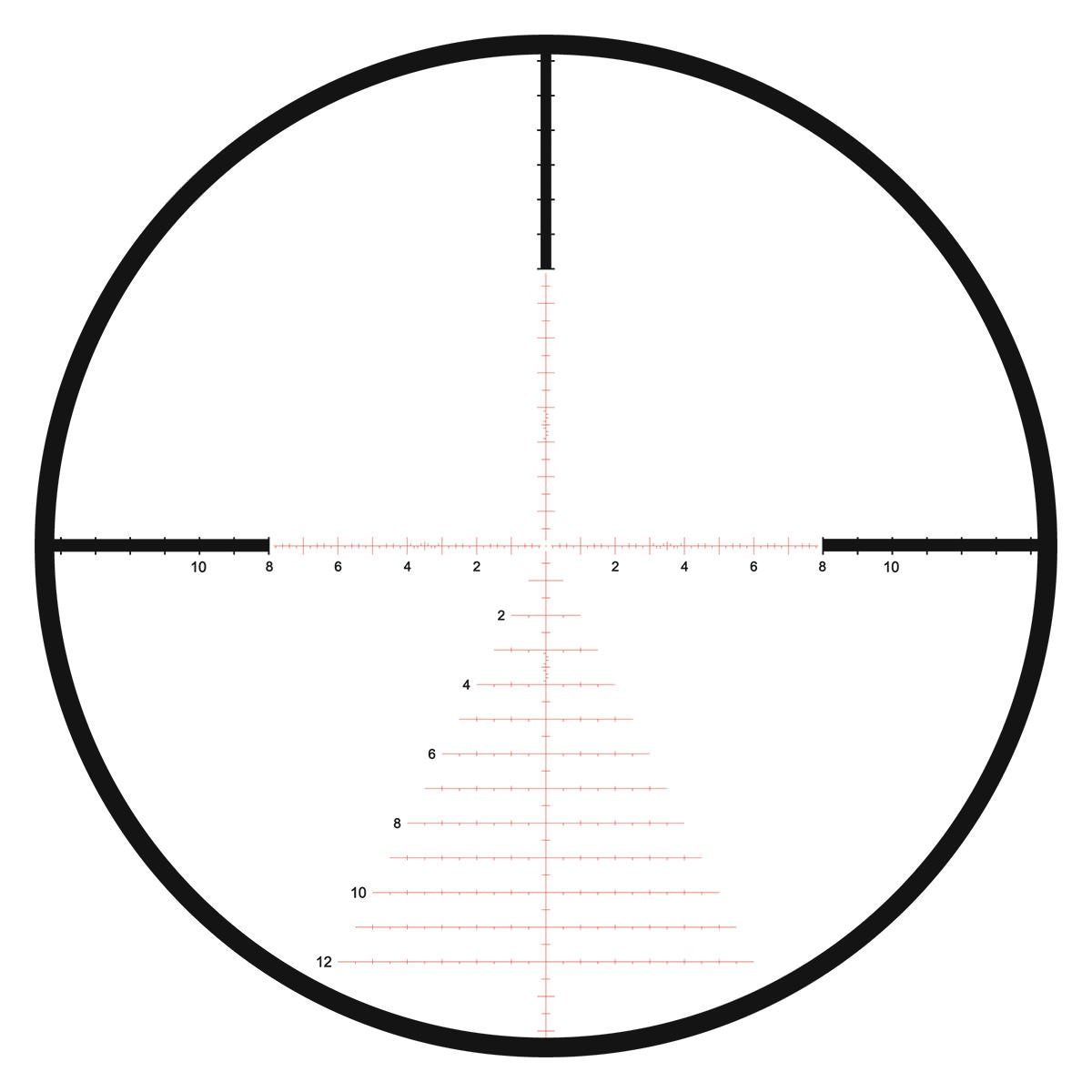

The K525i is available with 5 precise illuminated reticles in first focal plane. Beside the proven and popular SKMR3, SKMR and MOAK, there are two further developments with the MSR2/Ki and the Mil4+.

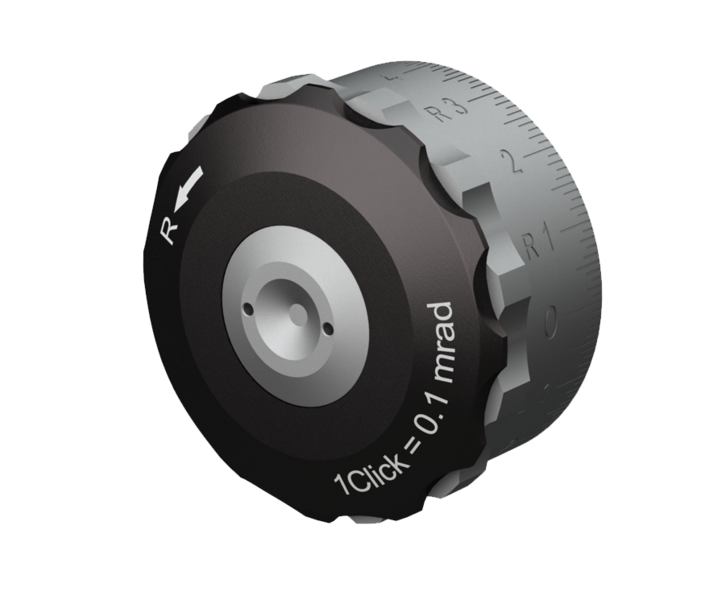

The innovative, patented TWIST GUARD windage with it´s freely rotating end cover, reliably prevents an accidental movement of the windage. This simple solution does not only protect the windage from accidental movement, it also allows the shooter a fast and unhindered handling of the windage without cumbersome need of “locking” and “unlocking”.
The allen key for zeroing the turrets, numbers to those little, practical details. It is housed in the cap of the illumination unit and therefore always available. Hence the illumination unit can easily be opened without any tool.
