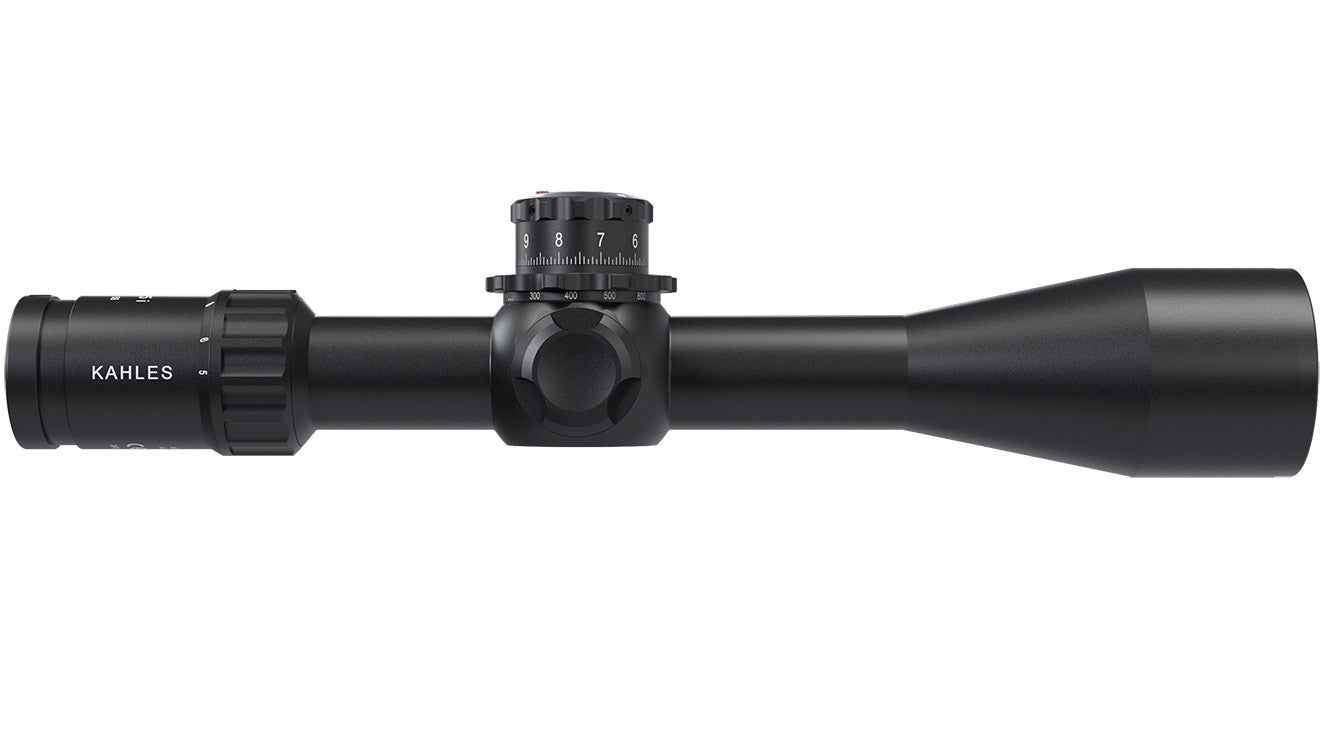

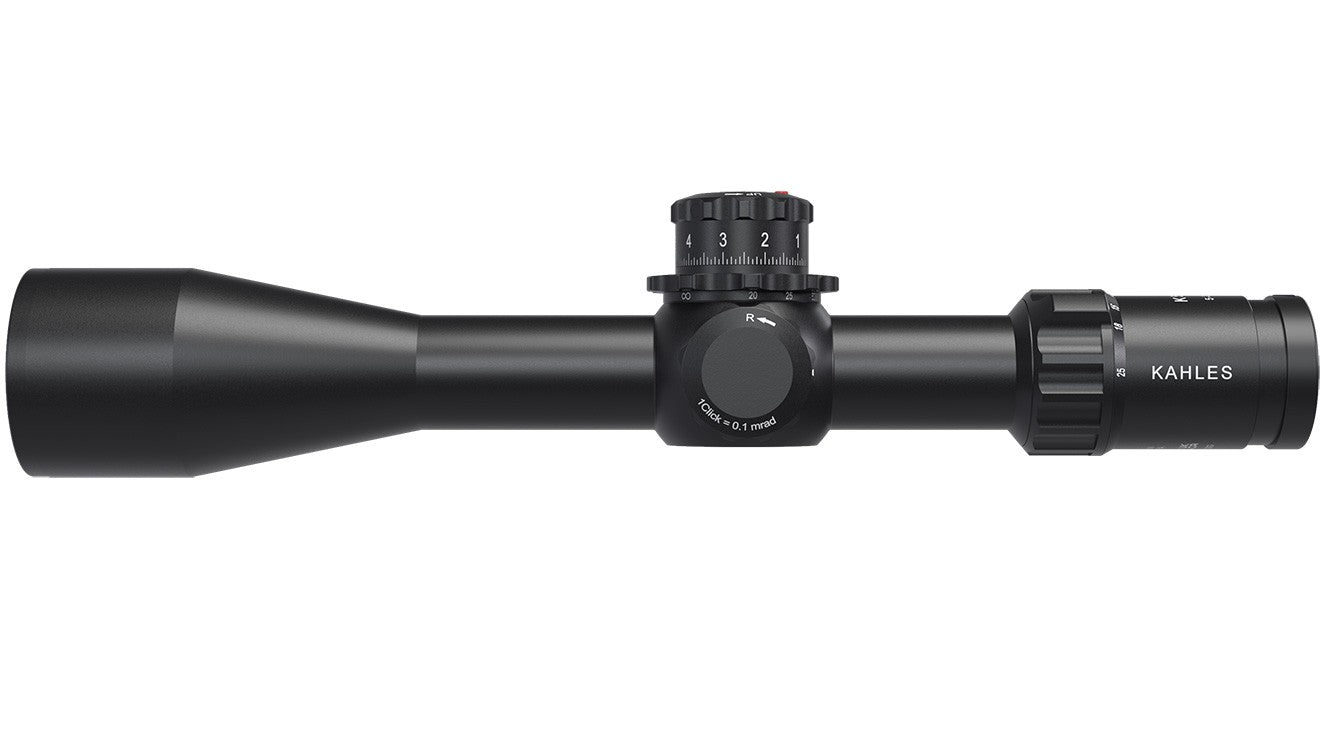

Kahles K525i 5-25x56 DLR SKMR (LSW) 10852

The Kahles K525i 5-25x56 DLR SKMR (LSW) 10852 combines maximum optical performance and precision with unique handling and ergonomics. A rugged riflescope for professionals, with windage optional left or right, precise illuminated reticles in 1 st focal plane and the unique TWIST GUARD windage.

NOTE

LSW  (Left Side Windage) is ideal for right handed shooters
RSW (Right Side Windage) is ideal for left handed shooters

CW - Elevation and windage are working clockwise (=сw)
CCW - Elevation and windage are working counter-clockwise (= ccw)

FEATURES

• 10 MIL Windage – increased usability in dynamic environments
• Enhanced Parallax Wheel Geometry – reliable handling in all conditions
• +7% FOV* – improved situational awareness with optimized peripheral perception (*Based on the comparison to K525i (2025))

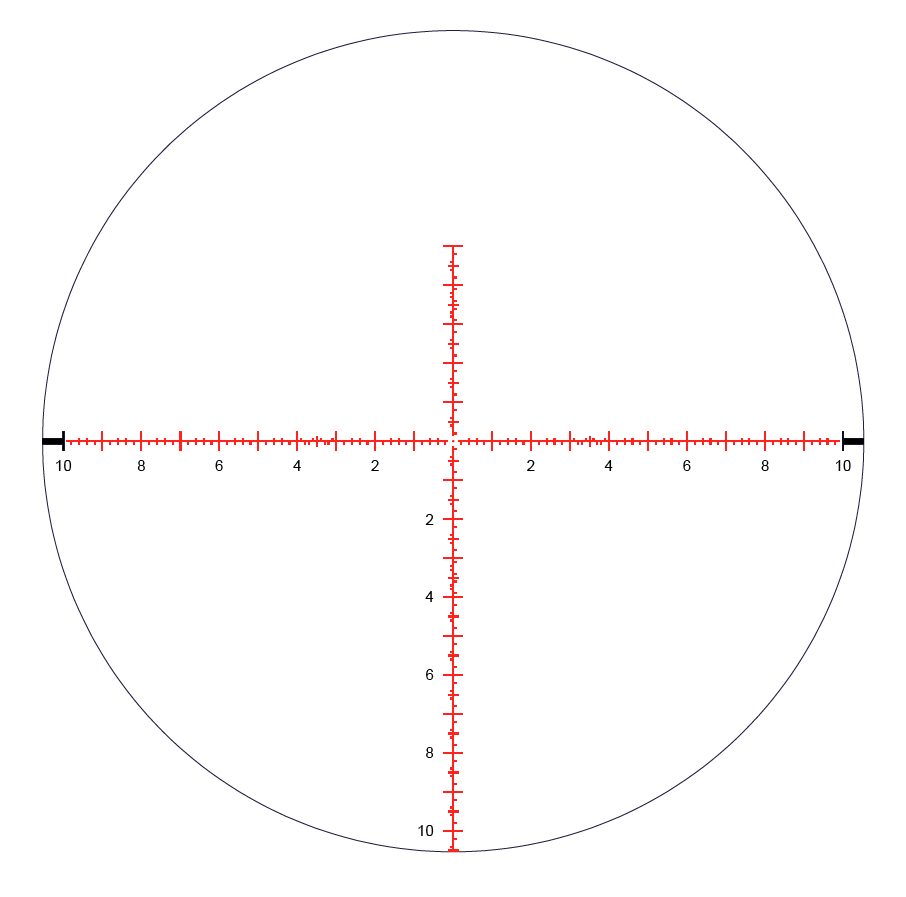

• Updated Reticle Designs – latest SKMR-design

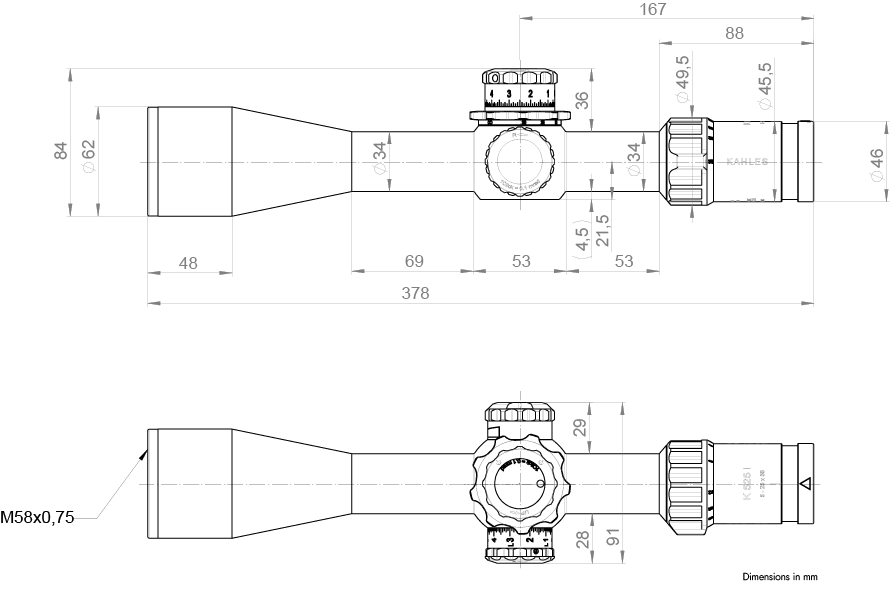

SPECIFICATIONS:

Magnification: 5-25x56i
Objective lens diameter: 56 mm
Exit pupil: 9.5 - 2.3 mm
Eye relief: 95 mm
Field of view: 7.7 - 1.6 m/100 m
Diopter compensation: +2 / -3.5 dpt
Twilight factor (DIN 58388): 16.7 - 37.4
Impact correction per click:  .1 MRAD
Adjustment range (E/W): 2,9/1,3
Parallax adjustment: 20 - ∞
Tube diameter: 34 mm
Length: 377 mm
Weight: 960 g
Focal plane: 1.
Illuminated: Yes
Warranty: 10 years
SKU: 10852
