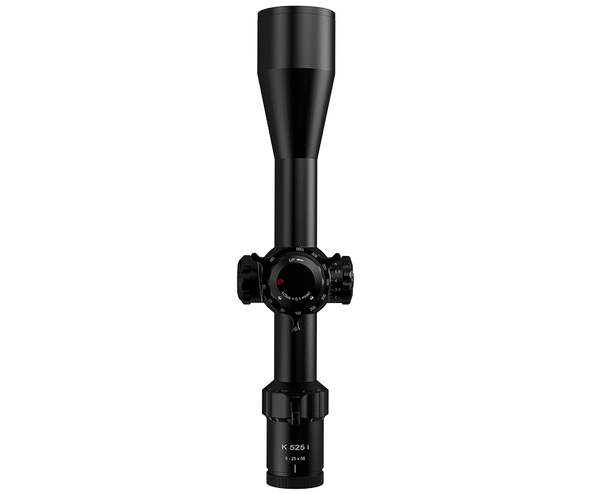

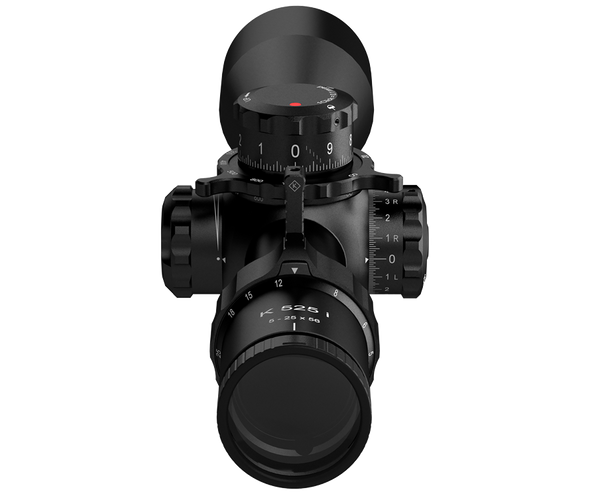

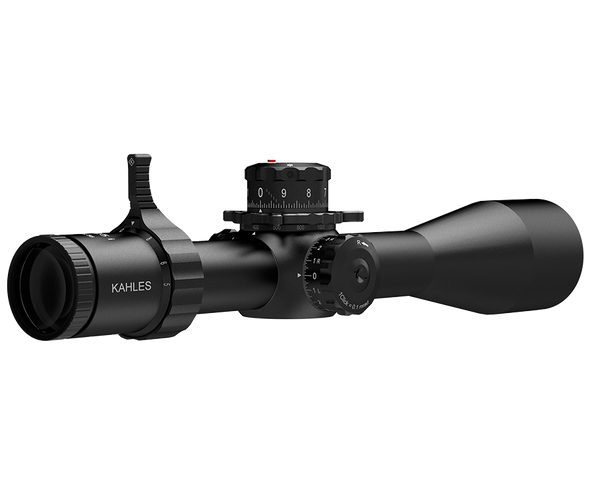

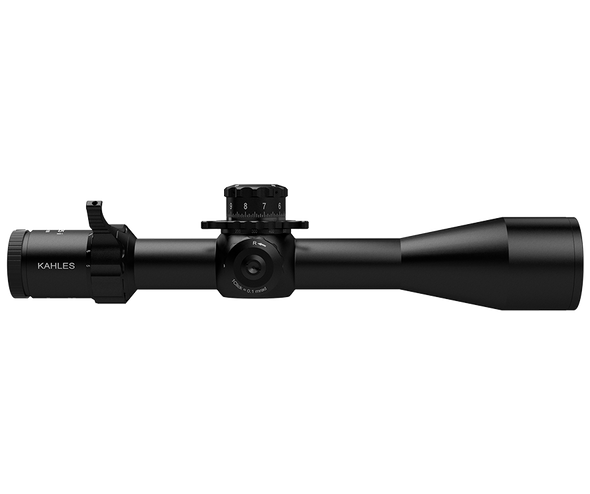

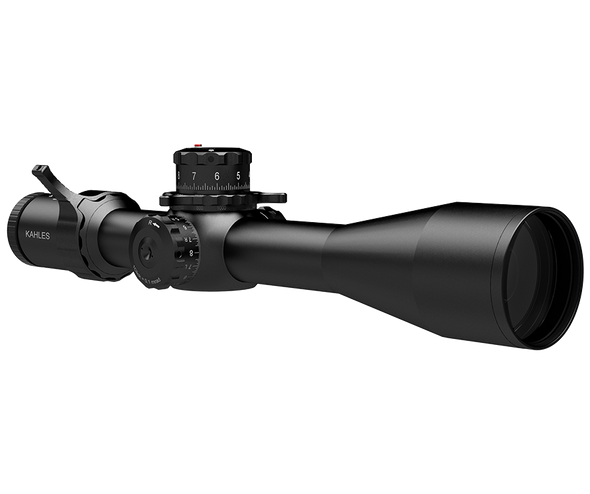

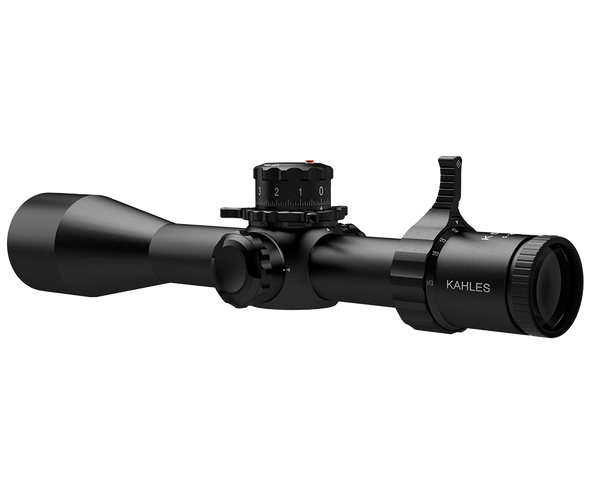

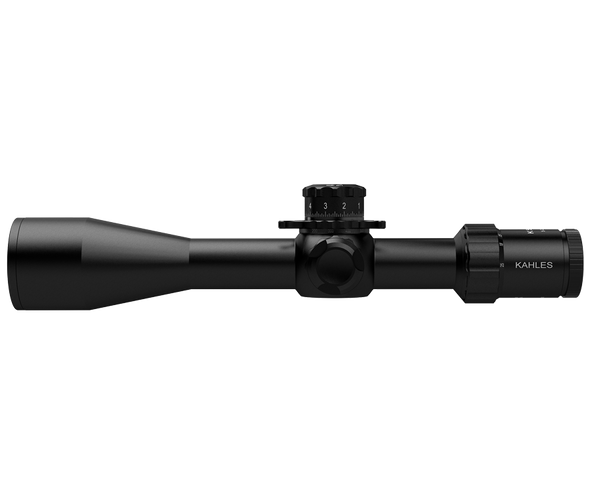

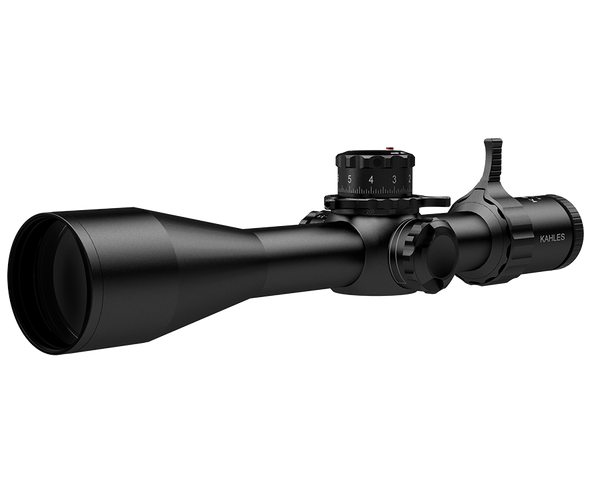

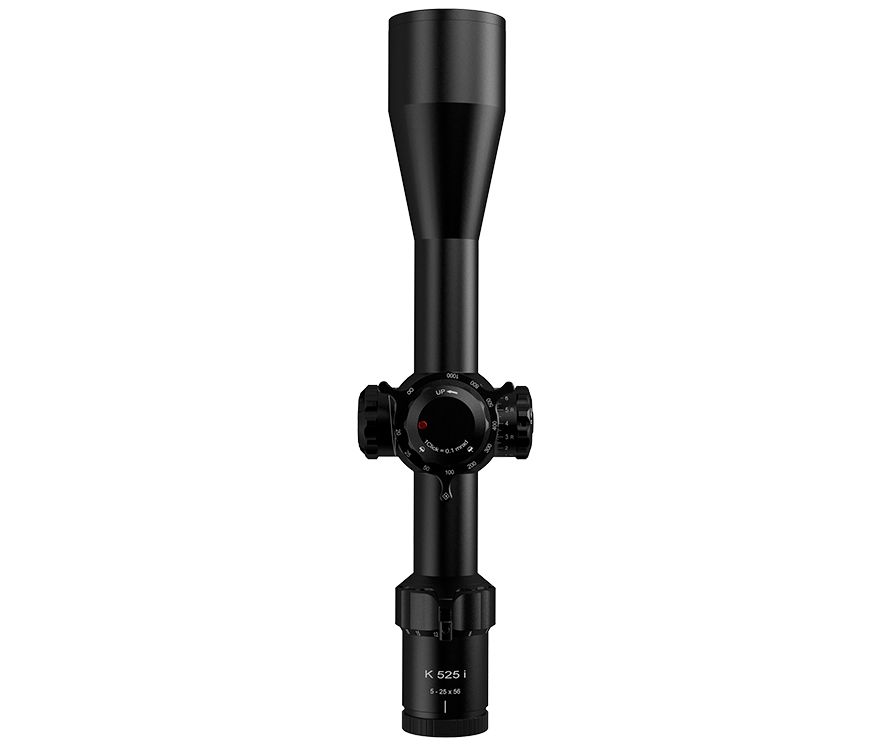

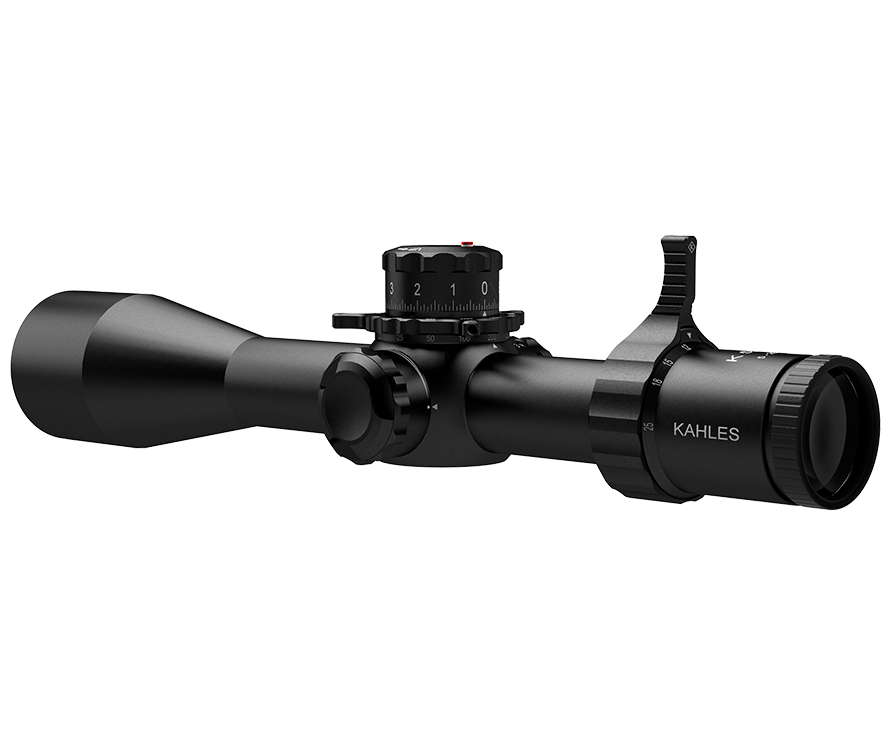

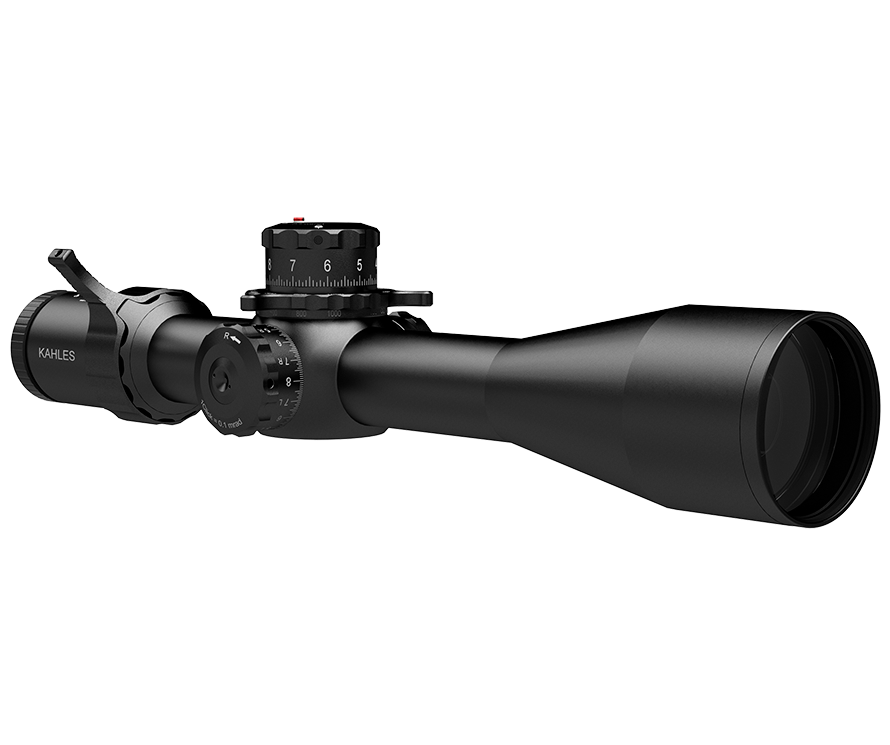

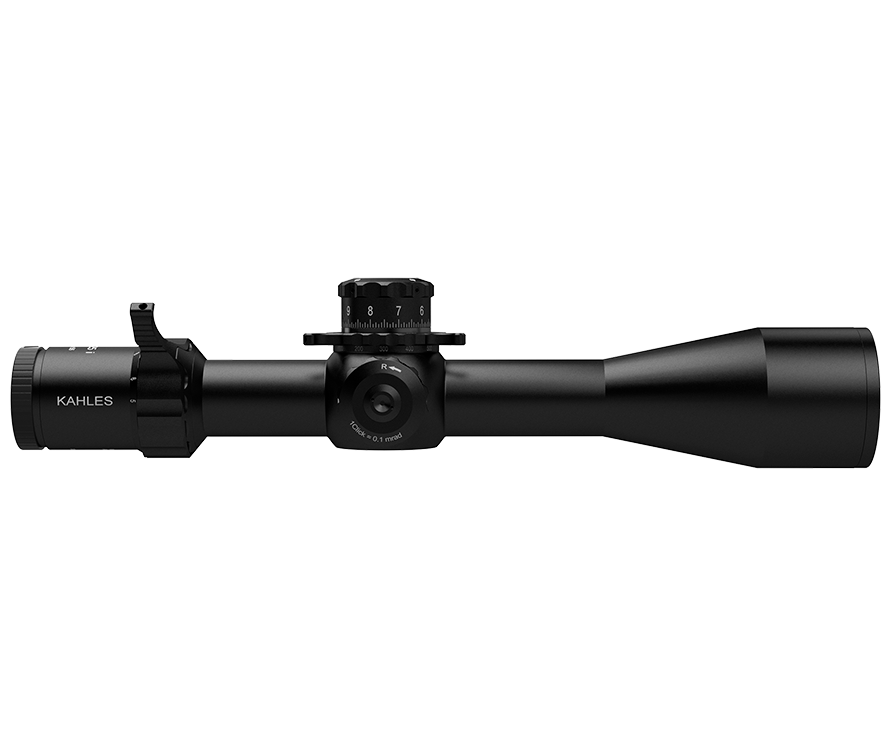

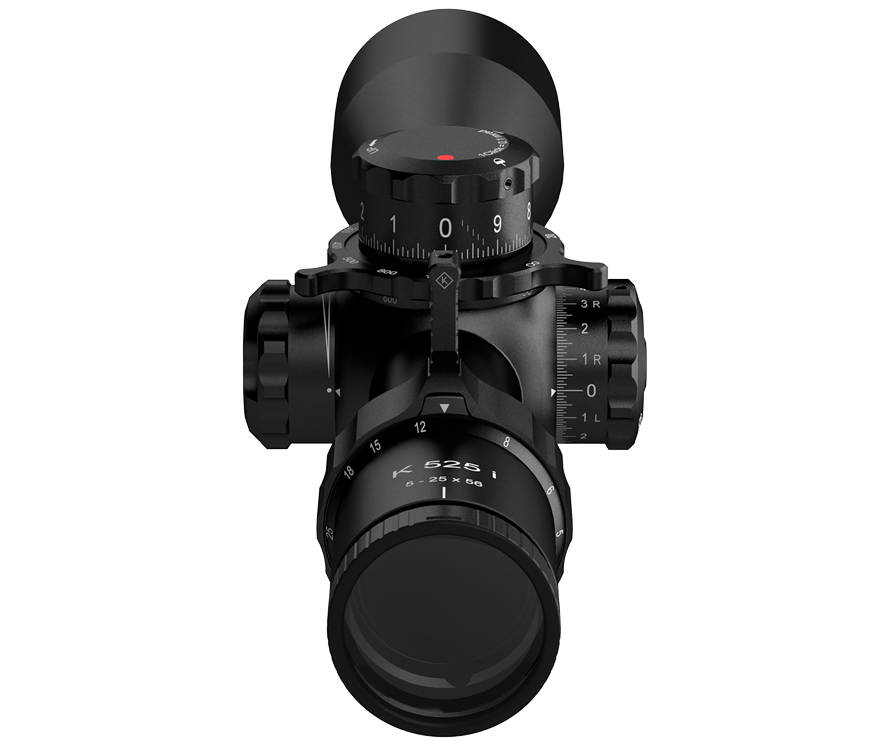

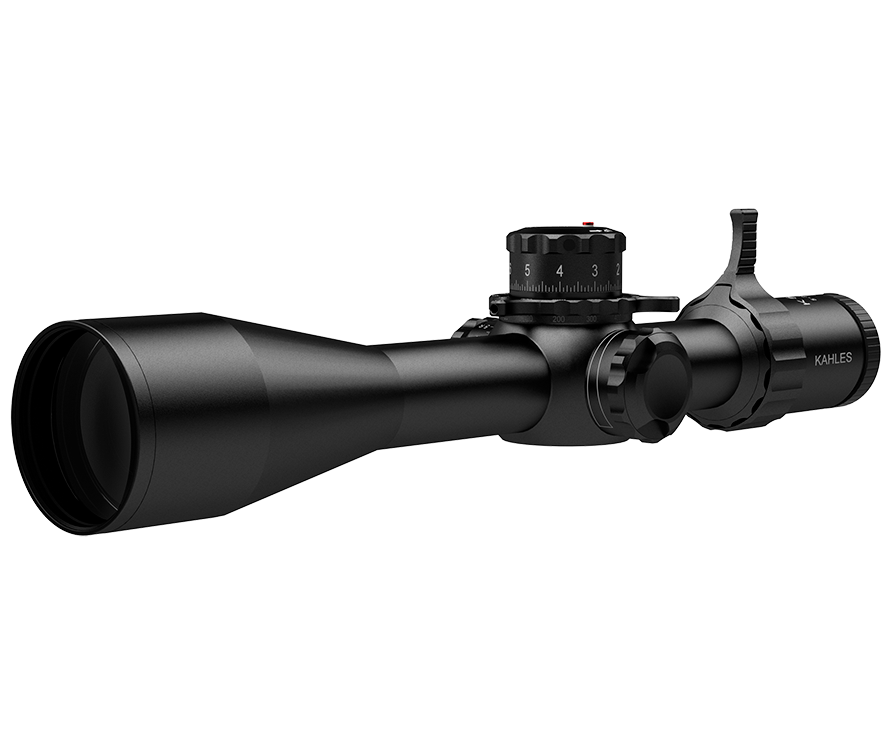

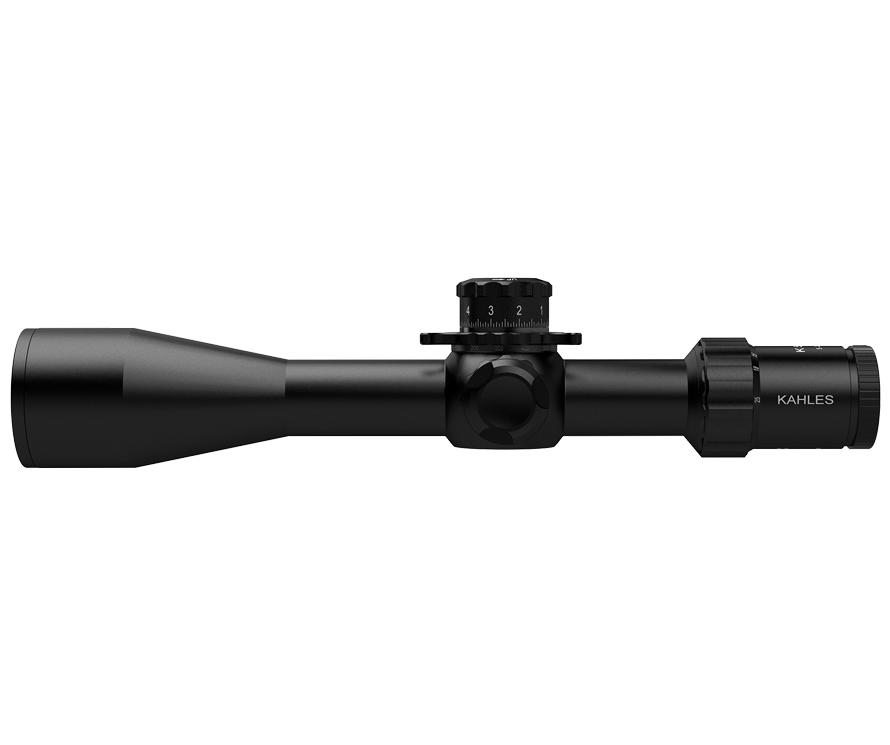

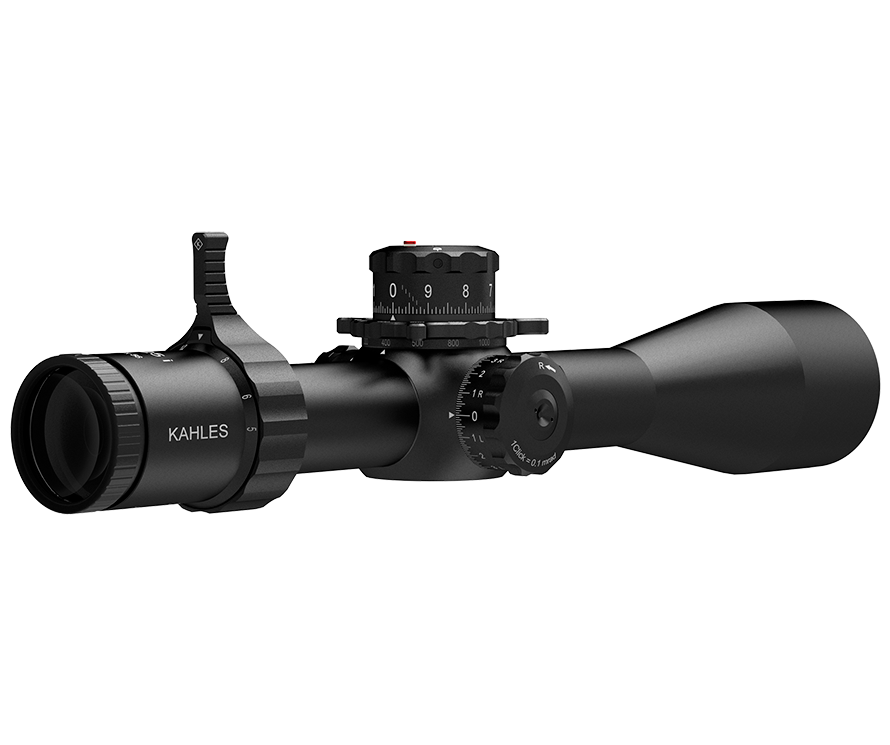

K525i 5-25x56 DLR CCW SKMR4 w-right 10678
NEW K525i DLR
The K525i combines maximum optical performance and precision with unique handling and ergonomics. The DLR variant is optimized for the fast action nature of Dynamic Long Range competitions. It features extended field of view, easy to read clicks, extralong throw lever and parallax spinner.
NOTE:
LSW (Left Side Windage) is ideal for right handed shooters
RSW (Right Side Windage) is ideal for left handed shooters
CW - Elevation and windage are working clockwise (=сw)
CCW - Elevation and windage are working counter-clockwise (= ccw)
FEATURES:
- Maximum optical performance with extra wide field of view 100 clicks per rotation - absolutely reliable repeat accuracy and clearly defined clicks
- Extra-large turret lettering for easy and fast reading
- Optional left or right TWIST GUARD windage
- Special equipment: extralong throw lever & parallax spinner for quick adjustments

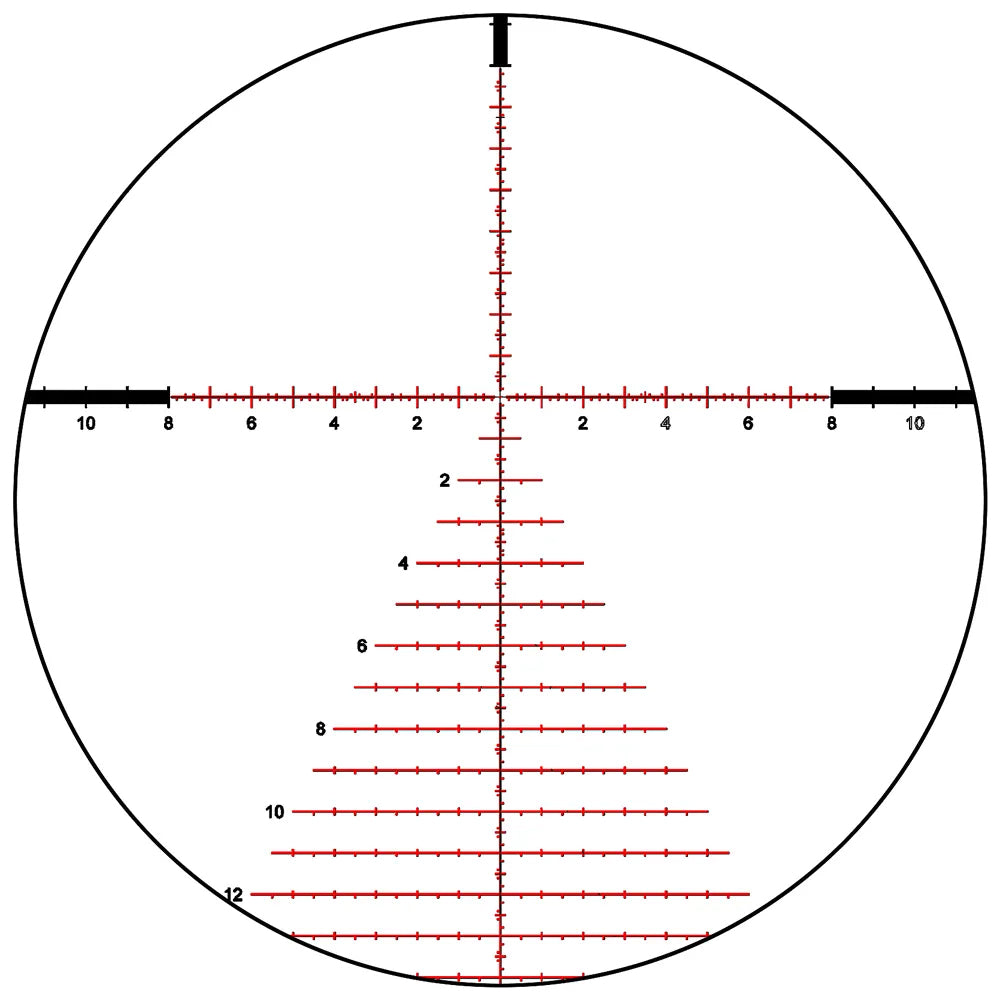

- Precise illuminated SKMR4 reticle in 1st focal plane

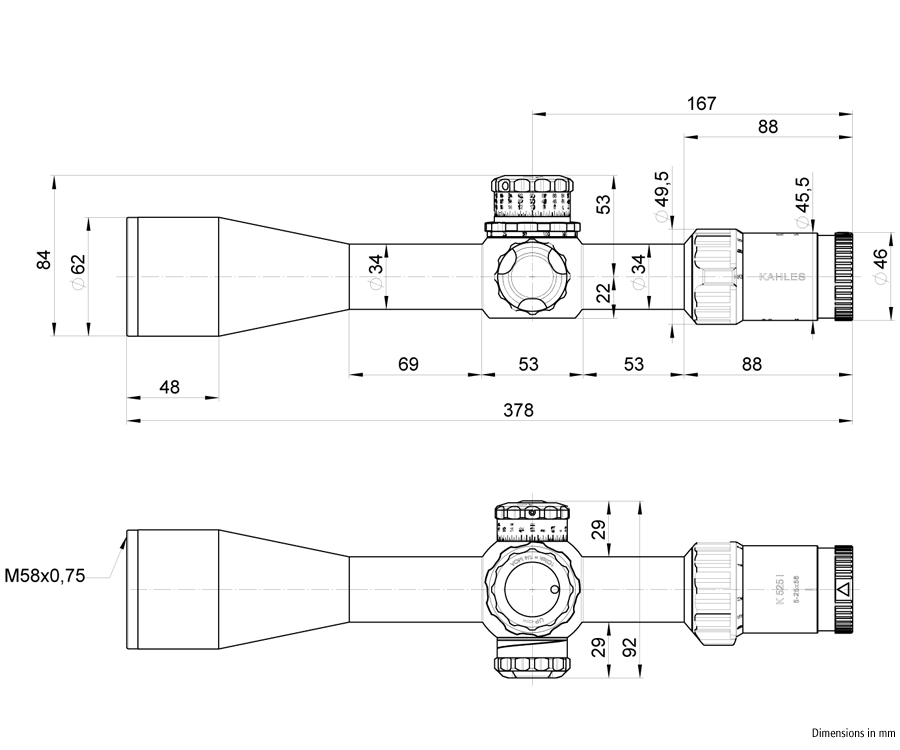

SPECIFICATIONS:
Magnification: 5 - 25
Objective lens diameter: 2,20 in
Eye relief: 3.74 in
Field of view: 25.2 - 5.2 in/100 yds
Diopter compensation: +2 / -3.5 dpt
Twilight factor (DIN 58388): 16.7 - 37.4
Impact correction per click: 0,1 MRAD
Adjustment range (E/W): 2,9/1,3 m/100m
Parallax adjustment: 20-∞
Tube diameter: 1,33 in
Length: 14.8 in
Weight: 35.0 oz
Focal plane: 1
Illuminated: Yes
Warranty: 10 Years
Windage: Right Side Windage (RSW)
Elevation and windage: counter-clockwise (CCW)
MPN: 10678
