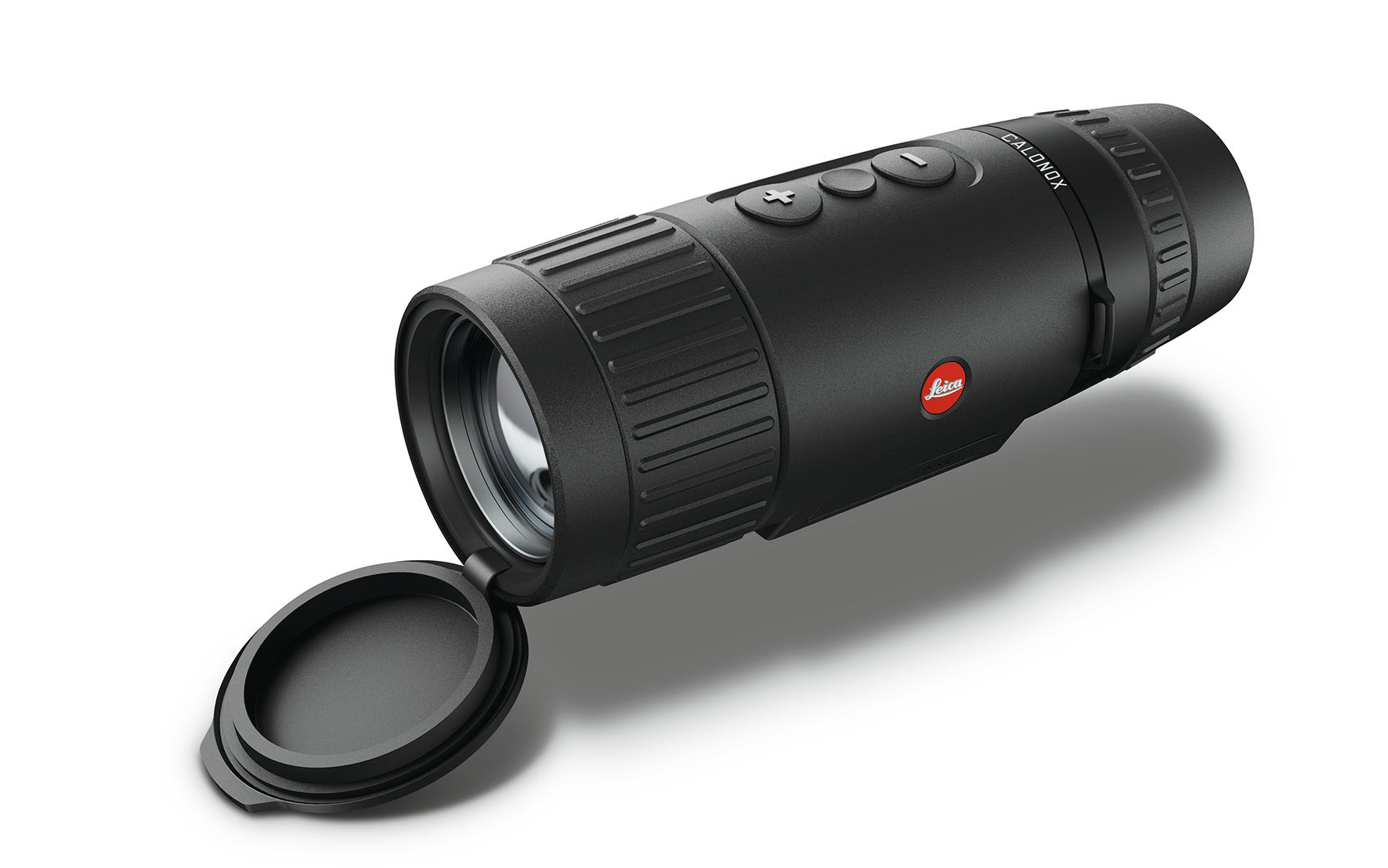

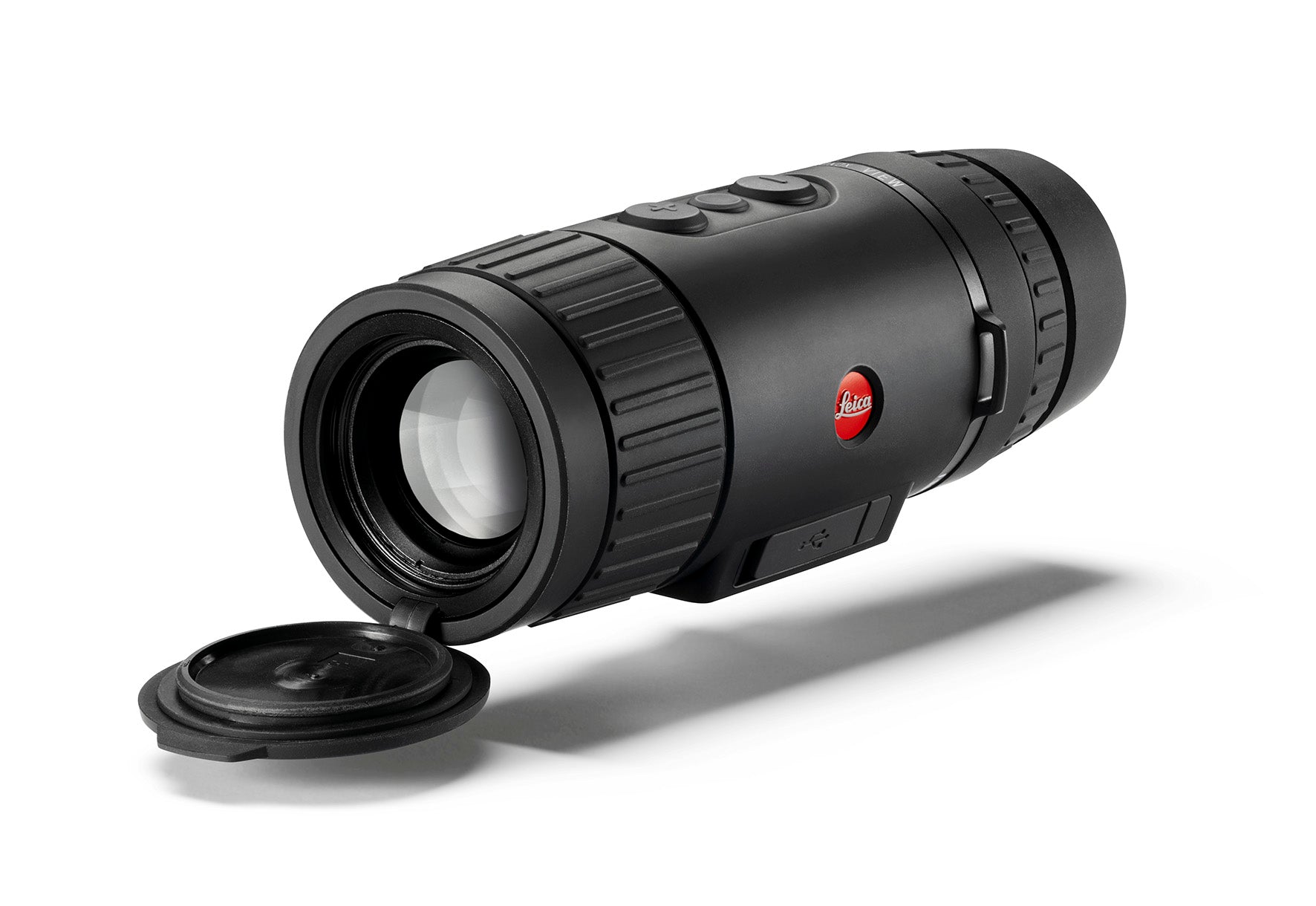

The Leica CALONOX View thermal imaging camera is an indispensable land management companion that offers superlative image quality - by day or night and under the most challenging conditions.
Superior image quality with Leica Image Optimization (LIO™). Uniquely sharp, detailed, high-contrast images. With the
CALONOX View, Leica continues its long, successful track record in digital image optimization, and extends its excellent reputation as a camera manufacturer. Leica’s own image processing (Leica Image Optimization - LIO™) improves the image with special algorithms, thus achieving particularly detailed color gradations, excellent contrast, and high detail resolution. The outstanding recognition range of the Leica Calonox Sight is based on a high-end vanadium oxide (VOx) sensor with 384 x 288 pixels and 17 µm pixel size with excellent temperature resolution.
Photo/video function with live view.Preserve special moments forever.The Leica
CALONOX View has 16 GB internal memory for recording special observations as photos or videos. Using the
CALONOX View App, the stored images can be transferred to a smartphone via WLAN, or to a computer via cable. Live view observations are also possible via cell phone.
Impressive detail recognition at a long range. Detect, recognize, identify.See more, identify game safely: With a defined target size of 1.7 x 0.5 m, the
CALONOX View can detect targets up to a distance of 2,000 meters, recognize targets up to 700 m, and precisely identify them up to 350 m.
Powerful digital zoom. See more, catch more details. Ideal for close-up observations, the 42-mm objective in combination with the 2.5x basic optical magnification provides a large field of view and the best overview. The digital zoom can be set to a magnification of up to 10x, so that no details remain hidden, even at great distances.
Four color modes for high-contrast detail recognition. Field-tested and true to detail.The four color modes White Hot, Black Hot, Red Hot, and Rainbow provide practical display variations and greater, high-contrast detail recognition.
Calonox View App. Even more convenient control.Quick and easy: With the
CALONOX View App, photos or videos stored on the camera can be transferred to the smartphone via WLAN. In addition, the live view function makes it possible to observe the scenery on your cell phone screen. With a simple click, you can switch the display from day mode to night mode.
Three calibration modes for image optimization. Restore, refresh, enhance.With the three integrated calibration modes Auto (A), Manual (M), and Background (B), you can restore, refresh, and enhance the image on the display. In modes A and M, shutter calibration is initiated automatically or, if you wish, manually at the touch of a button. Background calibration with a covered objective lens is particularly efficient and achieves the best results.

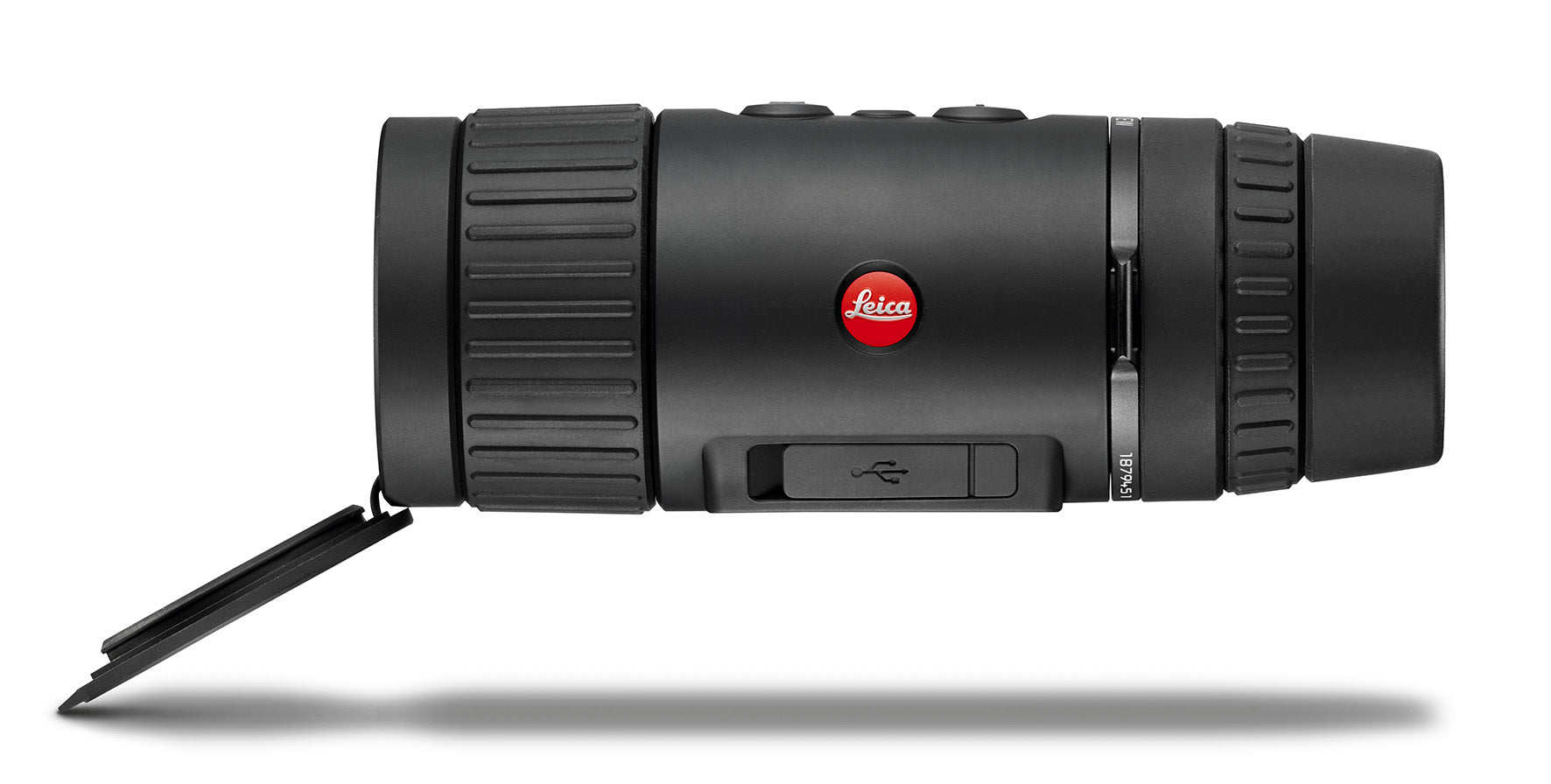

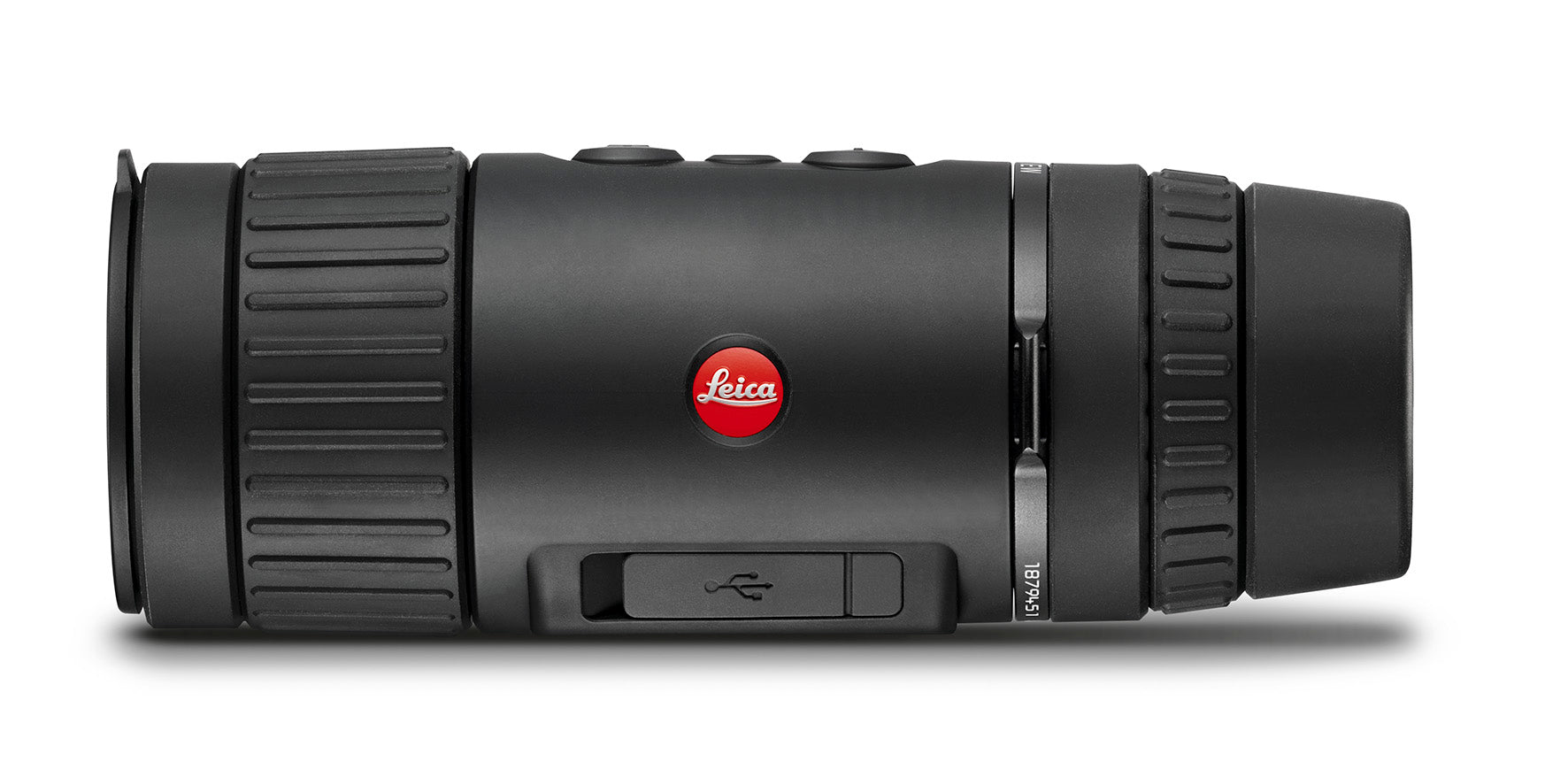

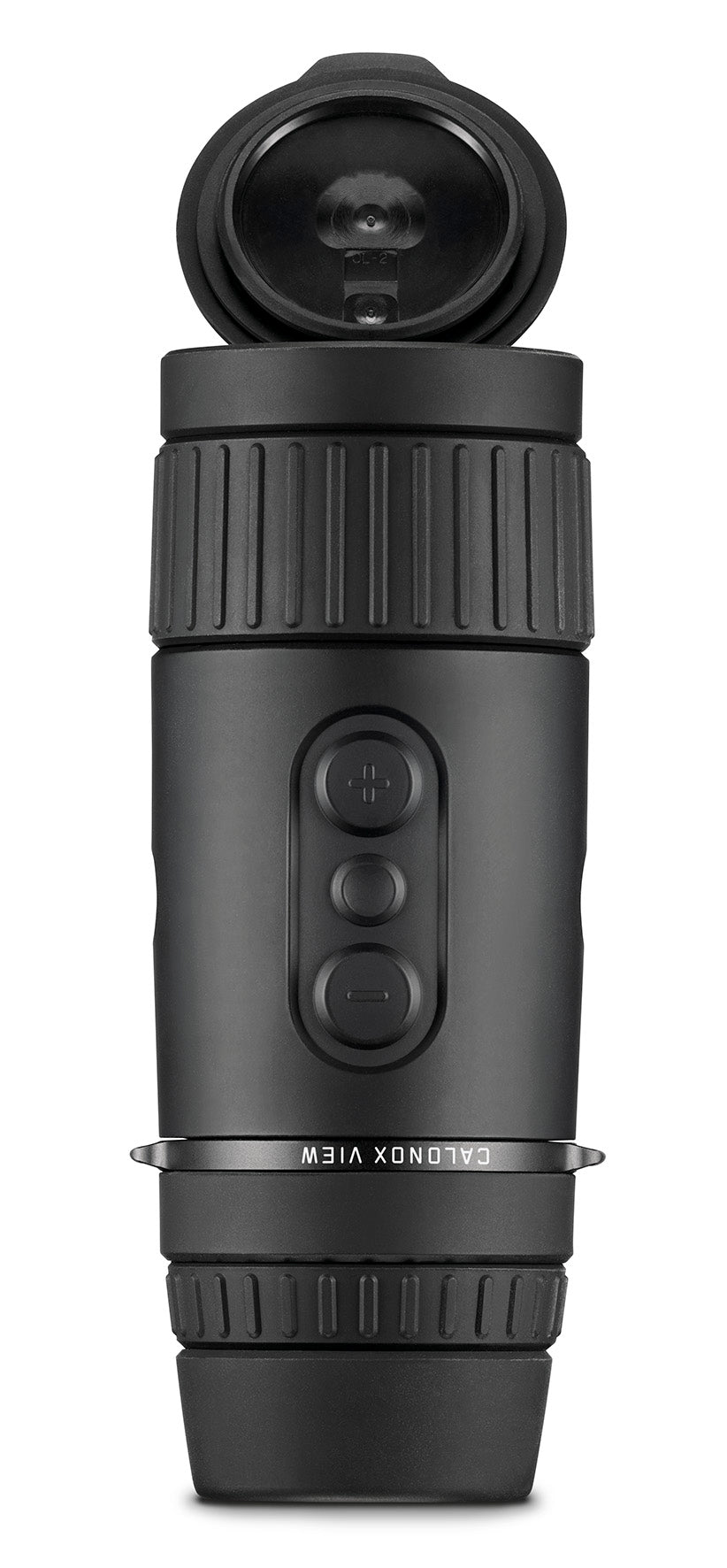

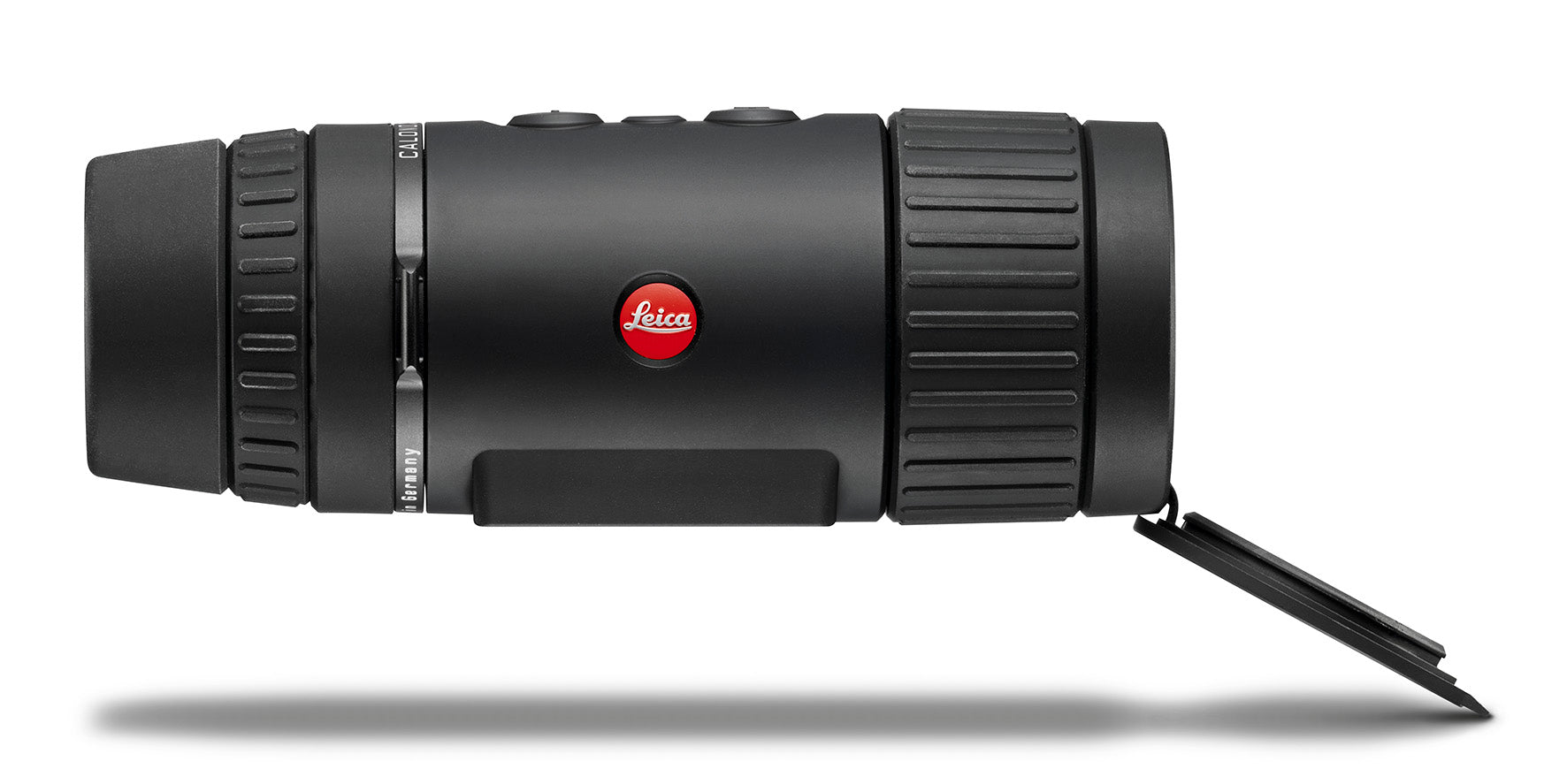

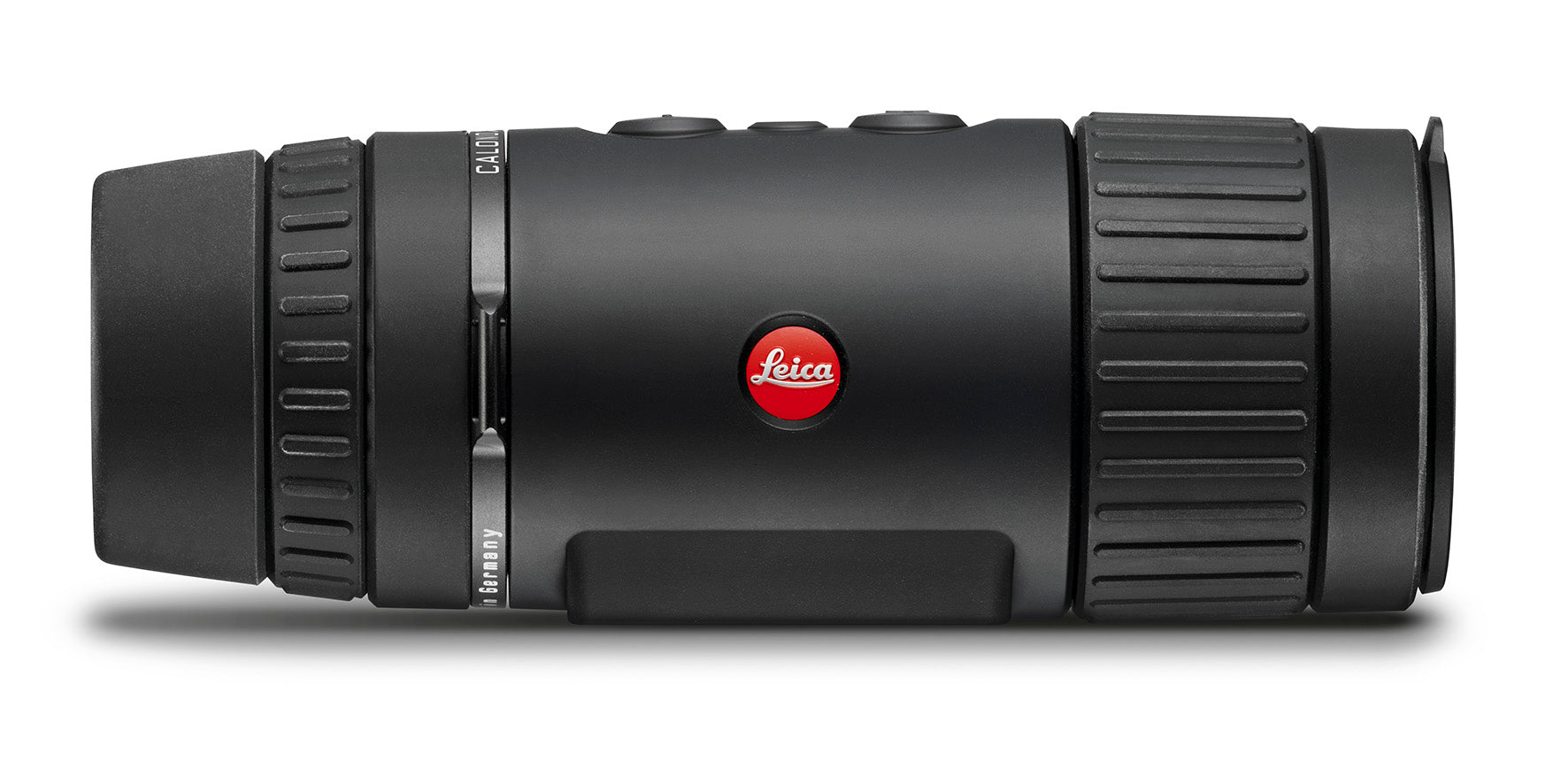

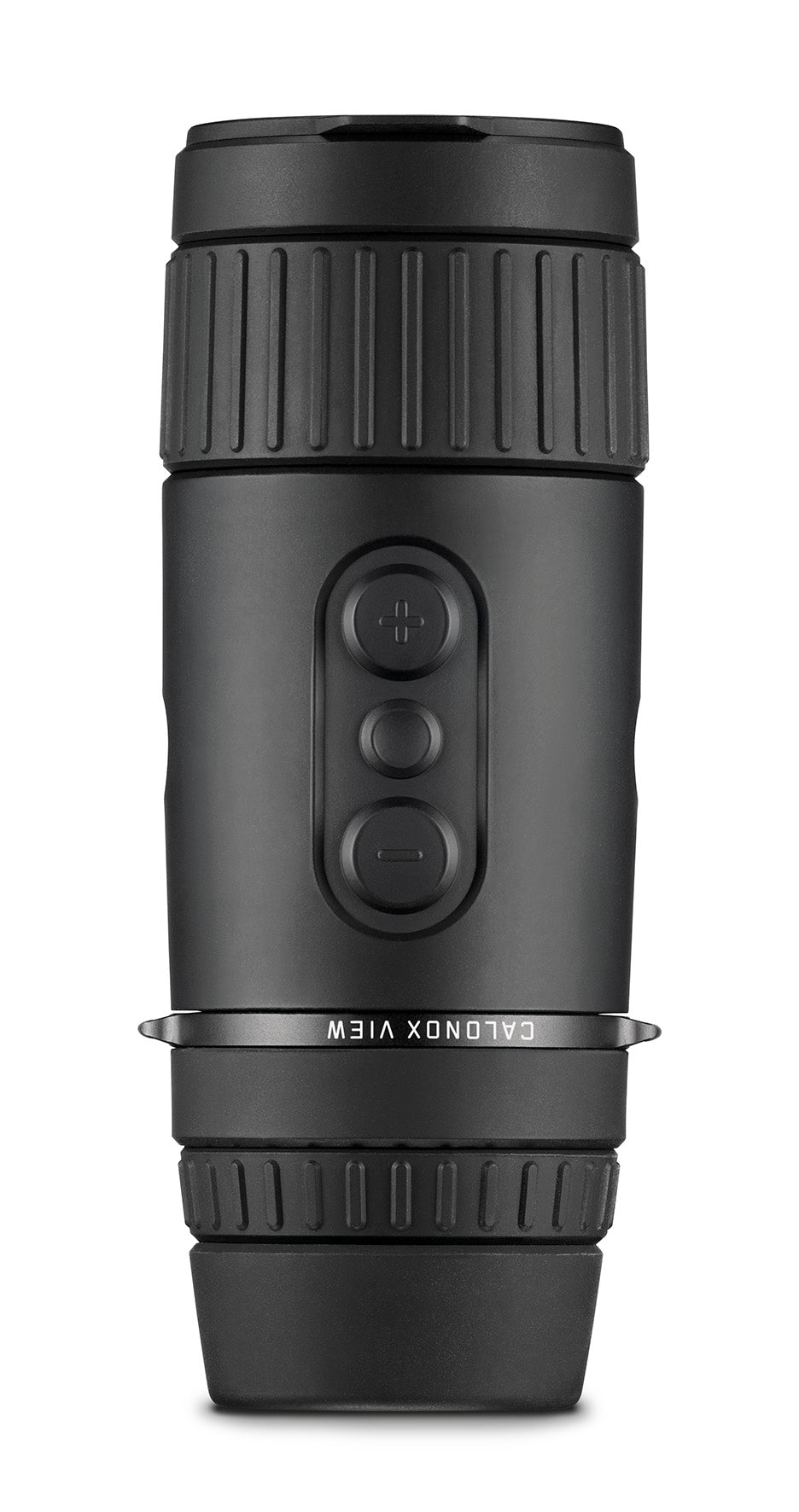

Elegant design & intuitive operation. Reduced to the essentials.The shapely product design in the well-known Leica style is geared towards the user’s hunting needs. Its cylindrical shape and easy operability integrate perfectly into the hunter’s equipment – whether mounted or hand-held. The user-friendly, intuitive three-button menu offers streamlined navigation, which enables easy and quick handling even when wearing gloves.
HD display & rechargeable battery. State-of-the-art technology.The powerful HD display with 1280 x 960 pixels enables comfortable observation and reliable identification when stalking or when shooting from blinds. The permanently installed rechargeable battery with approx. 5 hours of power is particularly well protected against cold and moisture. And charging is possible during operation, e.g. by using a powerbank.
Technical Data:Designation: Leica
CALONOX ViewDevice type : Thermal imaging device
Type No.: 1970
Order No.: 50502
Scope of delivery:
CALONOX View, cordura case, charging cable, carry strap,
quick start guide, lens cleaning cloth, certificate
Sensor type: VOx
Sensor size: 640 x 512 pixels
Pixel size: 12 µm
Screen type: LCOS
Screen diagonal : 0.4”
Screen resolution: 1280 x 960 pixels
Image repetition frequency: 50 Hz
Lens focal length: 42 mm
Optical basic magnification: 2.5x
Digital Zoom: 1x/2x/3x/4x
Field of view: 10.5 x 8.4° (18.3 m x 14.6 m/100 m)
Diopter adjustment: ±5 dpt
Acquisition range/Resolution: 3000 m/2 pixels
Detection range/Resolution: 1000 m/6 pixels
Identification range/Resolution: 500 m/12 pixels
Adjustment reticle correction: -
Video output: PAL
Video recording: yes
Video/Picture resolution: 768 x 576 pixels
Cable socket: USB-C
Wireless connection: Wi-Fi (2.4 GHz)
Internal memory: 16 GB
Protection type: IPX4
Operating temperature: -10 to +50 °C
Operating temperature (charge battery): +10 to +30 °C
Battery life: approx. 4 - 5 h
Accessory thread: -
Tripod thread: A ¼ DIN 4503 (¼”), M5 standard thread
Material: Plastic with rubber armoring
Dimensions (WxH): 170 x 65 mm
Weight (with battery): 685 g
EAR Control Statement or the Calonox View:
“This product is subject to the Export Administration Regulations (EAR). You many not export, re-export, resell, transfer or otherwise dispose of this product to any other country without first obtaining approval from the U.S. Department of Commerce, Bureau of Industry and Security, in accordance with the EAR, Title 15, Code of Federal Regulations Part 730. Diversion contrary to U.S. law is prohibited.”
