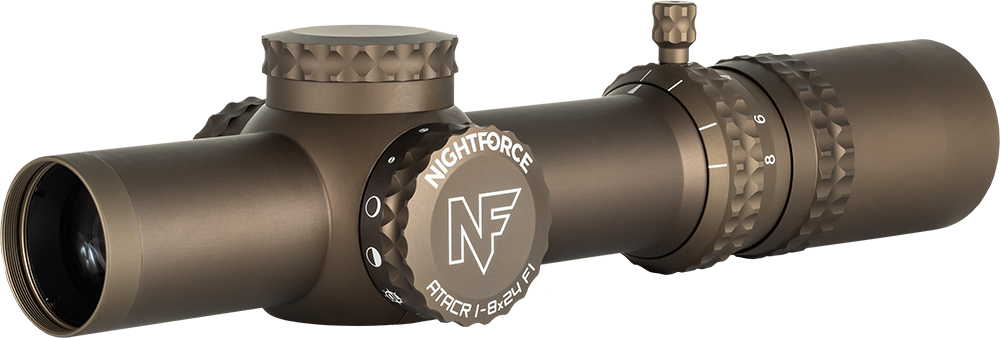

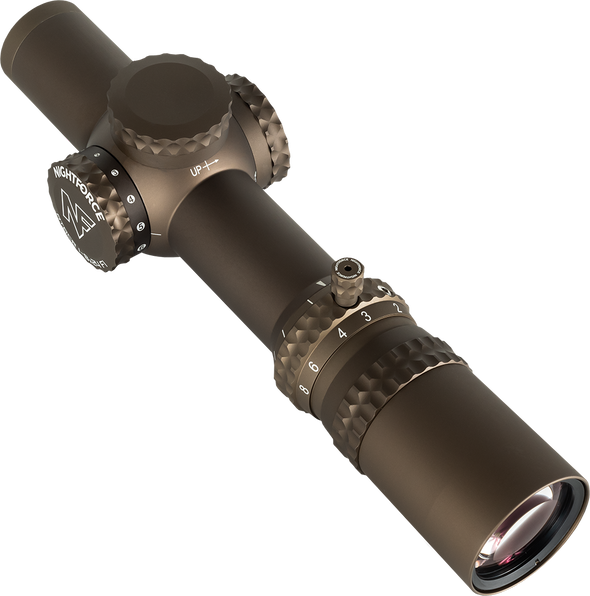

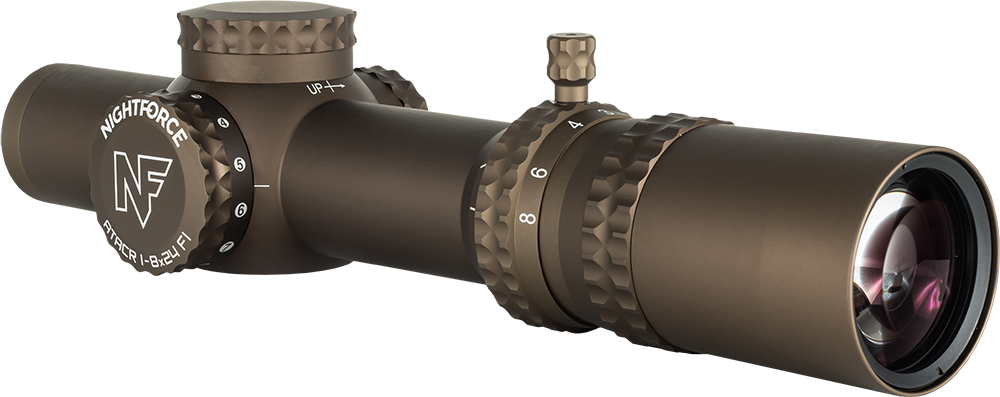

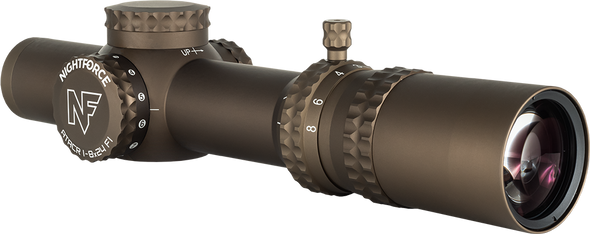

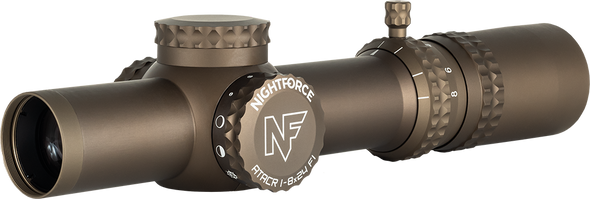

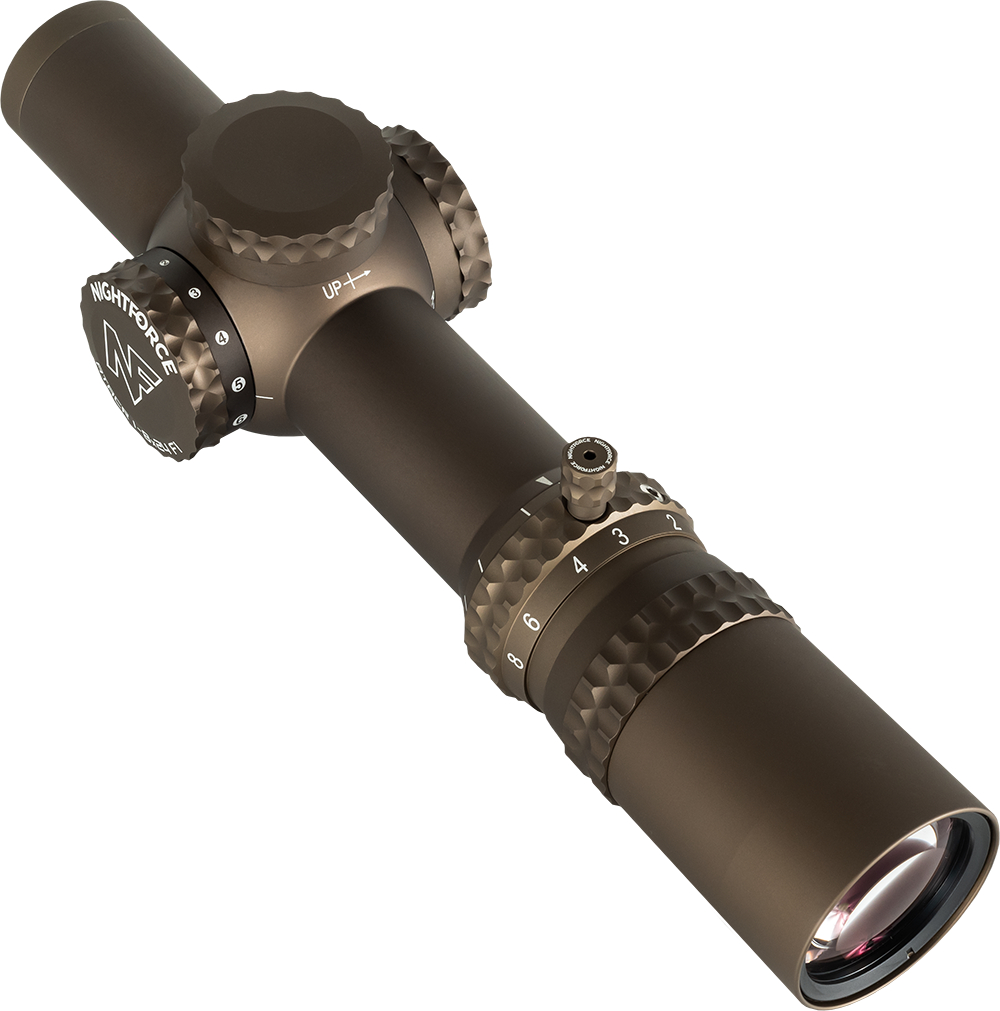

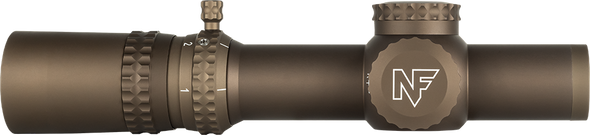

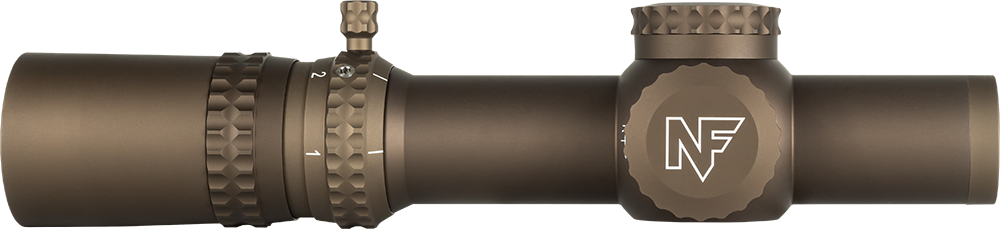

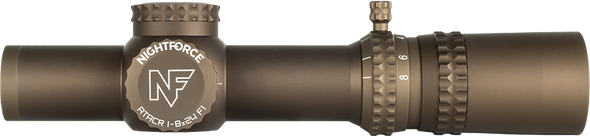

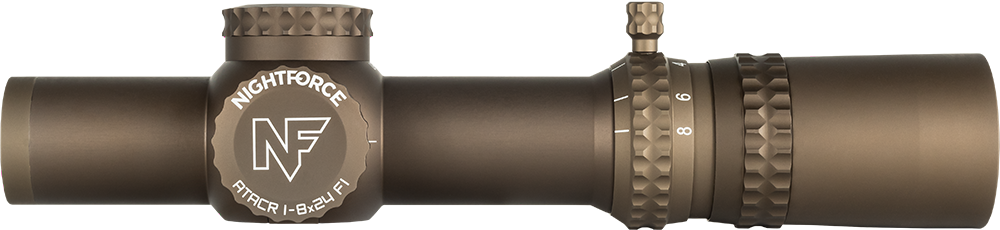

The ATACR™ 1-8x24 riflescope is designed and built to be the ultimate low-power variable riflescope. It includes pristine ED glass, bright daylight illumination, an intelligent reticle, very low-profile adjustments and bomb-proof reliability, with a field of view at 1x equivalent to open sights…but vastly more precise.
It measures just over 10 inches in length and weighs 21 ounces, with a streamlined profile. The daylight visible, center red dot allows for rapid engagements like a red-dot sight.

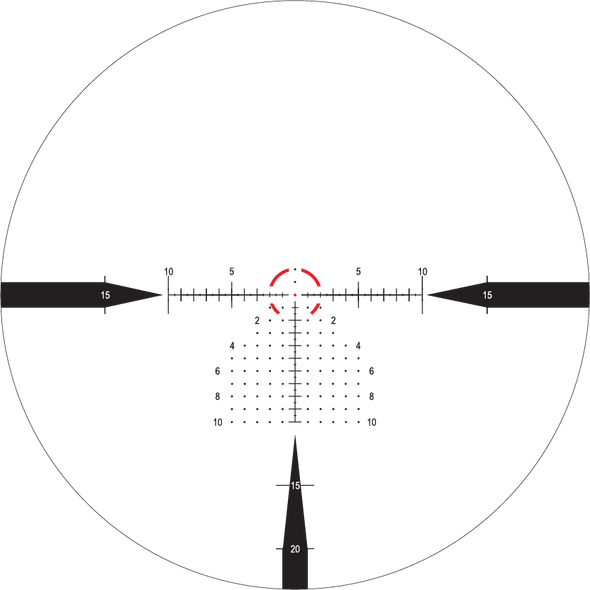

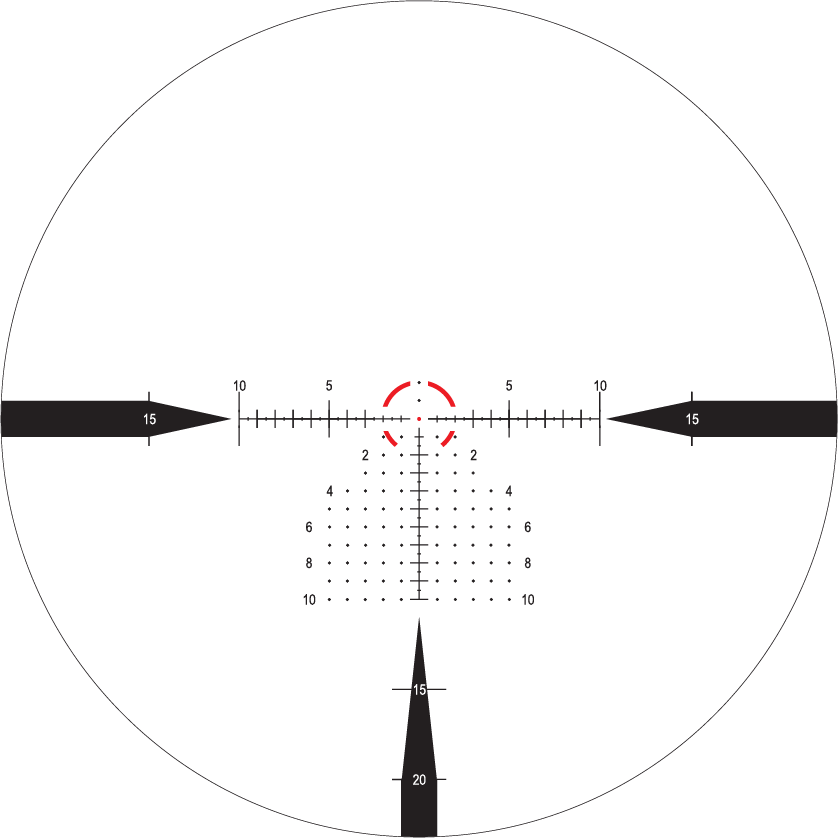

Unlike a red-dot, however, the 1-8x provides up to 8x zoom to help locate, identify and engage targets at the maximum effective range of most rifles. The intelligent FC-DM first focal plane reticle provides precise hold and hold-off points. The low-profile turrets are capped to prevent accidental adjustment and offer true .1 Mil-Radian adjustment. To aid in fast magnification adjustments, an integrated Power Throw Lever (PTL) is included.
FEATURES
- First Focal Plane
- 8x Zoom
- ED glass
- Bright daylight illumination
- Intelligent reticle
- Very low-profile adjustments
- Bomb-proof reliability
SPECIFICATIONS
Magnification Range: 1-8x
Focal Plane: First Focal Plane (F1/FFP)
Body Tube Diameter: 34mm
Overall Length: 10.1in/256 mm
Mounting Length: 5.7 in/144 mm
Weight: 21.0 oz/595 g
Click Value: .1 MRAD
Internal Adjustment Range E: 30 MRAD
W: 30 MRAD
Parallax Adjustment Fixed @ 125 m
Eye Relief: 3.7 in/95 mm
Field of View @ 100 yd/m 1x: 96.1 ft/32.0 m
8x: 13.1 ft/4.4 m
Exit Pupil 1x: 11.3 mm
8x: 3.2 mm
Illumination: Daylight visible, Externally adjustable, Two night vision settings
Elevation Feature: Capped, finger-adjustable
Power Throw Lever: Standard
